Automatic HFFS Standup Pouch Packing Machine with Weigher

Automatic HFFS Standup Pouch Packing Machine with Weigher

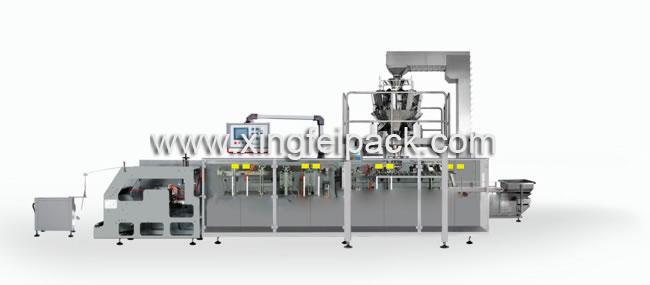

Stand Up Pouch Packing Machine

Description

Stand Up pouch packing machine is a completely horizontal form fill seal automatic machine, which is made up of bag-making, dosing, filling and sealing. Match with different filling head, the machine can pack powders, granule, liquids, and pastes in three side or four side sealed sachets.

Application

Automatic doypack filling machine is mainly suitable for the food, cosmetic, agrochemical industry, can pack materials such as liquid, powder, granule and suspending agent all kinds of materials.

Features

1. In packaging design, stand up pouch packing machine has upright and elegant appearance without liquid, powder around the end seal.
2. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
3. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
4. The wrapping material is all kinds of multilayer heat-sealable films.

Parameter of Stand Up Pouch Packing Machine

Machine dimensions 6000 × 1100 × 1500 (L × W ×H) mm
Weight 2200kg
Electric supply AC380V, 50Hz
Power 8kW
Air supply 0.5MPa
Air consumption 200NL/min
Packaging capacity 40 to 60ppm
Wide size 90 mm to 180 mm
High size 110 mm to 260 mm
Max. filling capacity 1000ml

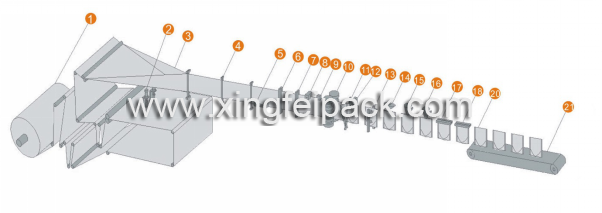

Packing Process of Stand Up Pouch Packing Machine


1.Film unwind 5.Bottom seal 9. Tear notch 13.Pouch opening 17. Top seal1
2.Bottom hole punching 6.Vertical seal1 10.Servo Bag puling 14.Air flushing 18. Top seal2
3.Bag forming 7.Vertical seal2 11.Cutting Unit 15.Filling1 19.Finished product
4.Film guide 8. Color scale detection 12.Pouch catching 16.Filling2 20.Outlet

Samples of Automatic Doypack Filling Machine
