Model: XFL-Y600II
Description

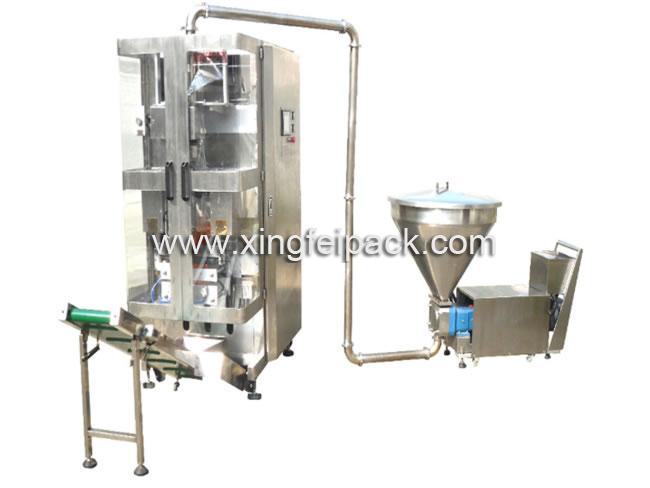

XFL-Y600II automatic paste packing machine can also be optional material transfer pump, which is special used for automatic quantitative filling and packing. It can effectively improve the production efficiency, and avoid secondary pollution because of bacteria invasion.
Application
Automatic sauce pouch packaging machine is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, and chemical industry, such as sweetened bean paste, lotus paste, fruit jam, Chinese watermelon jam, peanut butter, Chili sauce, salad sauce, cheese, peanut oil, soy sauce, wine, mineral water, liquid and Non-food detergent, grease.
Features
1. Appearance and molding parts adopt stainless material, which is easily operation and comply with food hygienic standard.
2. Automatic paste packing machine adopts Electrical components with reliable quality, which is convenient to purchasing and replacement.
3. The imported US or domestic 316 stainless feed pump is optional. It features sturdy, durable, high standard pressure which is suitable for high viscosity material conveyor.
4. The packing ability can up to more than 1.5 tons per hour and self filling and sealing can be finished when the temperature up to 85℃.
5. Flume cooling equipments and blow drying machine, feeding machines and conveyor flow-line equipments are available, which can save time and improve the overall production efficiency.
Technical Parameters of Automatic Paste Packing Machine
|
Model
|
XFL-Y600I
|
XFL-Y600II
|
|
Bag
|
100 to 280mm
|
100 to 300mm
|
|
Bag length
|
150 to 480mm
|
150 to 600mm
|
|
Film
|
220 to 590mm
|
220 to 650mm
|
|
Packing material
|
NY/PE
|
|
Packing capacity
|
4 to 10bags/min
|
|
Packing volume
|
Max.5000cc
|
Max.10000cc
|
|
Making type
|
Back seal
|
|
Power supply
|
AC, 380V50Hz/60Hz
|
|
Power of automatic sauce pouch packaging machine
|
4.5kW
|
|
Air pressure
|
0.6 to 0.8 Mpa. 0.006 m3/min
|
|
Dimension (L × W × H)
|
1350mm × 980mm × 1980mm
|
1350mm × 1080mm × 2150mm
|
|
Weight of automatic paste packing machine
|
980kg
|
1080kg
|

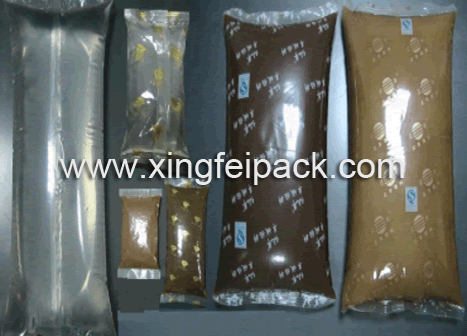

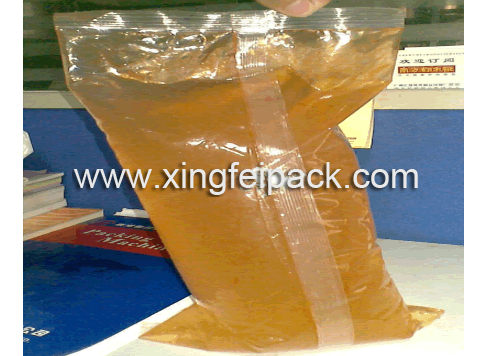

Sample of Automatic Paste Packing Machine
