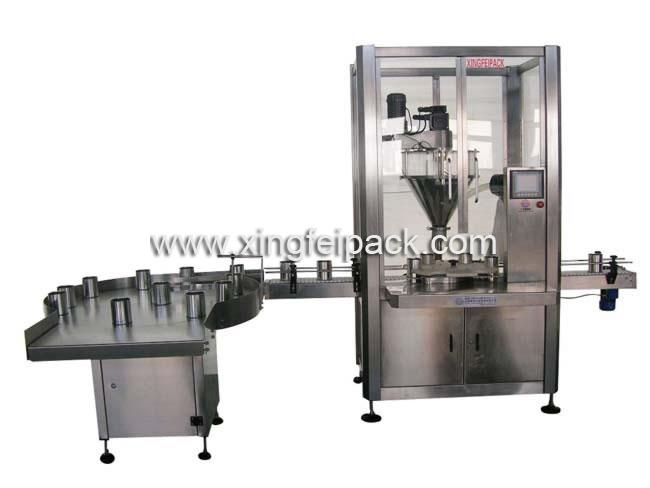

The XFF-G automatic powder filling and packing machine can finish the process of feeding, dosing, filling and waste discharge automatically. With humanizing frame and reasonable mechanical structure, this open-door hopper is easy to change the packing materials and convenient to clean.
Application
The powder bottle filling machine is suitable for packaging powdery, grainy product, such as milk powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid medicament, powdery and grainy additive, dye, etc.
Features
1. Chinese/English touch screen and PLC control system are available. Auger is driven by servo motor.
2. The automatic powder filling and packing machine has the functions of cans support, vibration and dust extraction.
3. Automatic bottle feeding system has the functions of no-can-no-filling.
4. The functions of over-weight warning, error message display and failed packs detecting & deleting ensure the packing quality, which never let any reject to pass through.
5. The machine can store at most 10 working parameters for later use.
Technical Parameter
Model
XFF-G Automatic Powder Filling and Packing Machine
Packing weight
10 to 5000g
Weighting range
1 to 6000g (with a resolution of 1g)
Packing precision
≤1%
Packing speed of powder bottle filling machine
20 to 50 can /min
Power supply
380/220V, 50 to 60 Hz
Power
2 kW
Weight
500 kg
Dimension
1750 × 2700 × 2300mm
Container Volume
Cylinder containers with a diameter of 50 to 180mm and a of 50 to 350mm

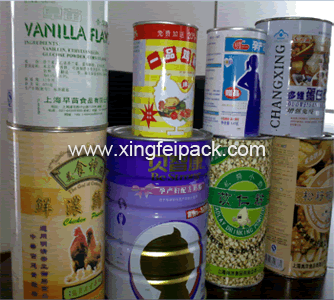

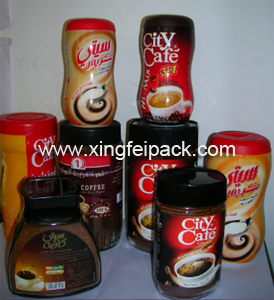

sample bottle or cans of powder filling packing machine
