Automatic Bottle Loading Carton Packing Machine(Automatic Case Packing Machine)

Model: XFC-ZX

Description

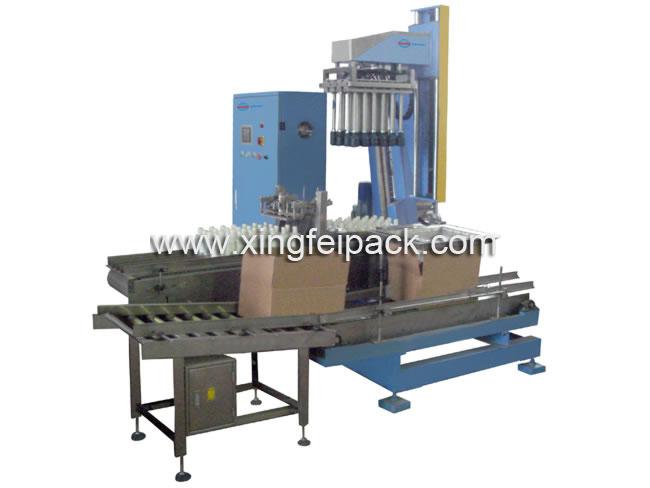

The automatic carton filling machine clamp the bottle by bottle holder (with rubber to avoid damaging the bottle), and then put the bottles into open carton. When the bottle holder lifts, the carton with bottles will be sent to carton sealing machine. This packing line is very easy to operate, which reduce the labors and work intensity. It is necessary for automatic production line.

Application

Automatic case packer for bottle is widely used for different products, such as round bottles, plastic flat bottles, irregular bottles, and different kinds of glass bottle, columned and oval-shaped bottle, square cans and paper cans. Automatic carton filling machine is suitable for packing bag products, which has the function of automatically counting, grouping, packing, loaded carton vibrating.

Feature

1. The machine will arrange the products according to the carton filling requirement.
2. Automatic case packer for bottle has novelty design and compact construction.
3. It is easy to move and used in the carton packing production line
4. It is controlled by the computer, which features easy operation and stable performance.
5. Automatic carton filling machine is controlled by PLC with human-machine interface display, which is easy to operate.

Specification of Automatic Case Packer for Bottle

Speed		≥70bags/min
Carton size	Length	≤500mm
		≤500mm
		≤500mm
Mechanical cycle		Mechanical/electrical/Pneumatic
Control system		PLC ,Servo
Display		touch screen
Powder supply		380V, 50Hz
Power		5 kW
Compressed air		0.6 Mpa
Air consumption		≥0.6 m3/min
Noise		＜70db

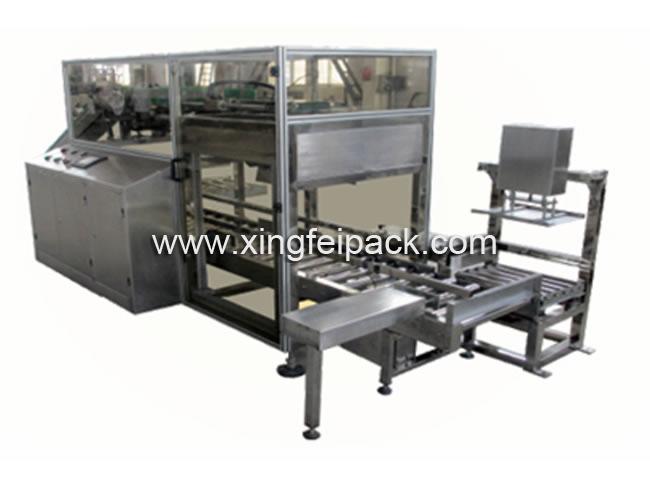

Parameter of Automatic Carton Filling Machine

Carton	L: 200 to 500 W: 150 to 400 H: 100 to 450mm
of the table	750 ± 50 mm
Carton speed	8 to 12 carton/min	16 to 24 carton/min
Dimension	2100 × 2000 × 2400mm
Power supply	220/380 50/60Hz
Air source	5 to 6kg/ cm3	6 to 8 kg/ cm3
Weight	1000 kg	1200 kg
