Model: XFG-BL
Description

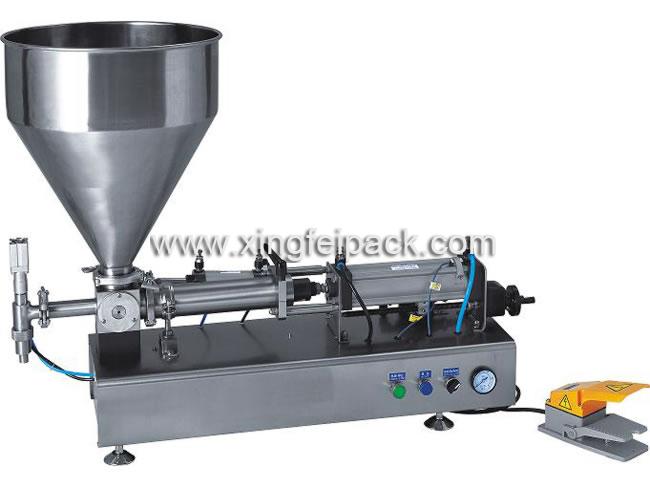

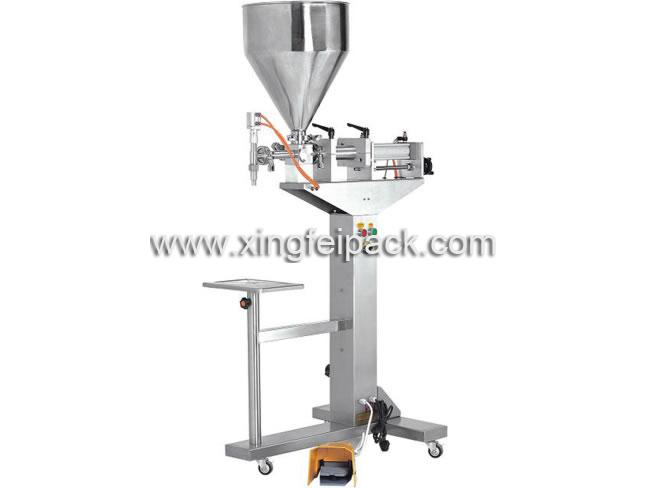

Semi automatic paste dosing machine is made of stainless steel, which meet GMP standard. It’s suitable for few amount and multiple products.
Features of Liquid Filling Machine
1. Filling Precision is +-1%
2. Easy to adjust filling measure
3. Easy to operate and maintain
4.Adopt import elements
5. Manual and automatic set
6. Easy to dismantle, install and clean
Technical Parameters of Semi Automatic Paste Dosing Machine
|
Model of Liquid Filling Machine
|
Filling Range (ml)
|
Produce (pcs/m)
|
Air Compressor Displacement
|
Power
|
Dimension (mm)
|
Weight
|
|
XFG-BL 100
|
10 to 100
|
20 to 25
|
5.7 ft³/min
|
220V / 50Hz
|
980 × 550 × 1450
|
35 kg
|
|
XFG-BL 250
|
30 to 250
|
20 to 25
|
5.7 ft³/min
|
220V / 50Hz
|
1000 × 550 × 1550
|
35 kg
|
|
XFG-BL L 500
|
100 to 500
|
12 to 18
|
5.7 ft³/min
|
220V / 50Hz
|
1100 × 550 × 1600
|
45 kg
|
|
XFG-BL 1000
|
200 to 1000
|
8 to 14
|
5.7 ft³/min
|
220V / 50Hz
|
1300 × 670 × 1650
|
45 kg
|
|
XFG-BL L 2000
|
500 to 2000
|
6 to 10
|
8.8 ft³/min
|
220V / 50Hz
|
1650 × 700 × 1700
|
75 kg
|
