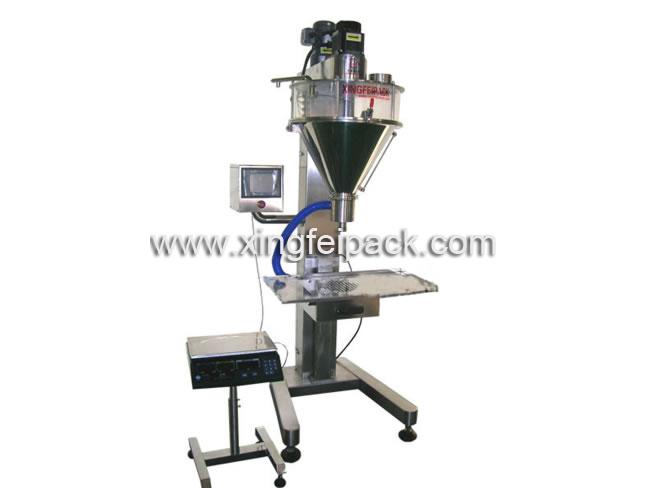

The semi automatic powder filling and packing machine can finish the process of dosing, filing, and alarm of the difference of the weight. The machine is suitable for packing powder material, such as milk powder, feedstuff, rice flour, sugar, coffer, monosodium glutamate, solid beverage, grape sugar, solid medicine, etc.
Features
1. The equipment uses Chinese and English touch screen with PLC control system.
2. The powder filling equipment use the servo motor to push the auger, the precision is high.
3. With side-open hopper, the machine is made of stainless steel and meets the GMP standard.
Parameters of Semi Automatic Powder Filling and Packing Machine
Packing weight
10 to 5000g (The screw attachment can be changed)
Weighting range
1 to 6000g (with a resolution of 1 g)
Packing precision
≤1%
Packing speed
15 to 60bag/min
Power supply
380/220V, 50 to 60 Hz
Power
1.5 kW
Weight of powder filling equipment
260 kg
Dimension of semi automatic powder filling and packing machine
1000 × 1300 × 2200mm
Volume of the hopper
50L (60L for oversized hopper)
Related Products

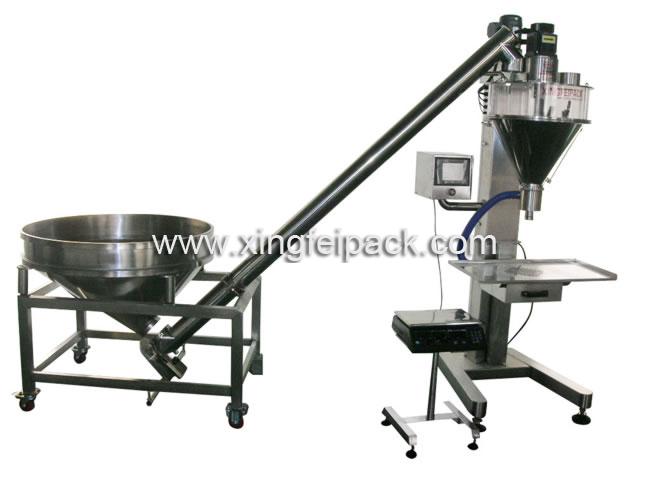

Automatic Auger Powder Conveyor
