We are a professional XFS-110 automatic HFFS pouch packing machines manufacturer in China. We have gained the recognition of a large number of clients through many years’ production experience and marketing and serving experience, and meanwhile we have accumulated abundant experience in terms of products.
Usage
With simple design and 100% pouch opening rate, three-side or four-side seal of pouch is available with kinds of blanking devices to packing different materials. The automatic horizontal form fill seal equipment is widely used in the packing fields of food, pharmaceuticals, house chemicals, cosmetics, etc. And our packing equipment is suitable for powdery, granular and liquid products.
Features
1. The automatic HFFS pouch packing machines is controlled by PLC with human-machine interface display, which is easy to operate.
2. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
3. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
4. In packaging design, the horizontal form fill seal equipment has upright and elegant appearance without liquid, powder around the end seal.
5. With the high sealing strength and firm package, there are never the ragged edges. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.
Technical Parameter
Model
XFS-110 Automatic HFFS Pouch Packing Machines
Machine dimensions (mm)
2060 × 750 × 1400(L × W × H)
Weight
About 600 kg
Electric supply
AC380V, 50Hz
Power
2kW
Air supply
0.5MPa
Air consumption
0NL/min
Packaging capacity
40 to 80ppm
50mm to 110mm
Length
50mm to 120mm
Max filling capacity
60ml

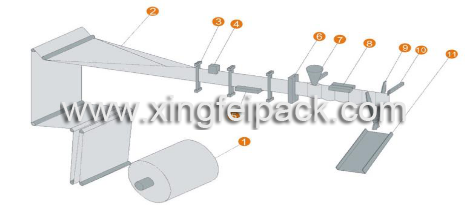

Automatic HFFS Pouch Packing Machines
1.Film unwind
3. Film guide
5.Bottom seal
7.Open and filling
9.Cutting
11.Outlet
2.Pouch forming
4. Color scale detection
6. Vertical seal
8.Top seal
10.Pouch pulling
Samples of Automatic HFFS Pouch Packing Machines
