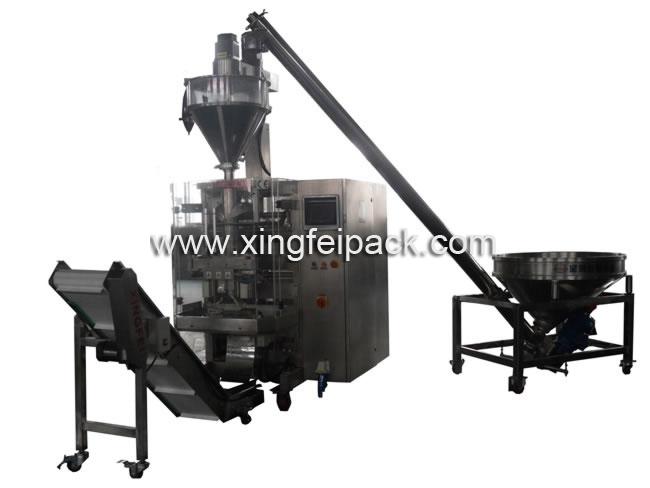

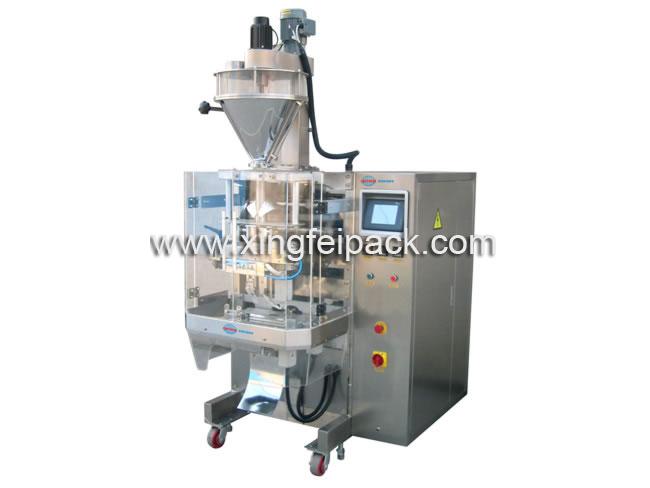

This XFF-L automatic powder packing machine can finish work of bag-making, weighting, filling, filling the nitrogen, date coding and bag-cutting automatically.
Application
Vertical powder packaging machine is suitable for packing power and granule material such as milk powder, protein powder, Nutrition powder, chili powder spices, milk tea, monosodium glutamate, solid beverage, sugar, grape sugar, coffee powder, feedstuff, solid medicine, powder type additive, and dye, etc.
Features
1. Intelligent temperature controller is used to control accurate temperature, which ensures the artistic and neat seal.
2. Touch screen can store the technical parameters of various kinds of products. It is unnecessary to reset while products changing.
3. XFF-L automatic powder packing machine is equipped with safety protection, and complies with firm’s safety management requirements.
4. Error indicating system can help to handle the trouble immediately. Pillow bags and hanging bags are made in terms of customers’ different requirements.
5. The drive control center composes PLC servo system, pneumatic control system and super touch screen, which maximize the control precision, reliability and intelligent zed level.
Parameter of XFF-L Automatic Powder Packing Machine
XFF-L 200
XFF-L 250
Measure method
Auger dosing
Auger dosing
Bag-making size
(W) 70 to 200mm (L) 100 to 300mm
(W)100 to 250mm (L) 100 to 350mm
Filling weight
10 to 500g
500 to 1000g
Packaging precision
≤1%
Packaging speed
25 to 60 bag /min
Power supply
Three phase 380/220V 50 to 60 Hz
Power
6 kW
Pressure
6 to 8 kg/cm2
Air consumption
0.2 m3/min
Weight
700 kg
950 kg
Dimension
1300 × 1500 × 2600 mm
Packing Samples of Vertical Powder Packaging Machine
