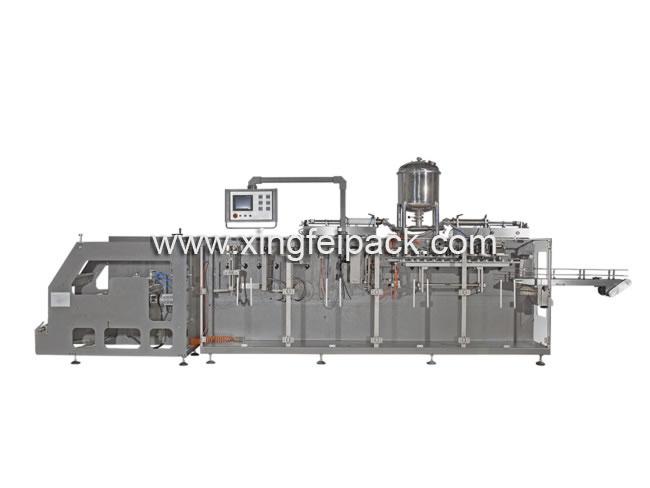

Automatic Horizontal Doypack Packing Machine

Model: XFS-180S

Description

XFS-180S horizontal doypack packing machine is controlled by PLC with human-machine interface display, which is easy to operate. The pouch shape is standup pouch, special shaped pouch, hang pouch, zipper doypack, which uses different filling device for different products packaging.

Application

Automatic doypack packing equipment is mainly suitable for the food, cosmetic, agrochemical industry, can pack materials such as liquid, powder, granule and suspending agent all kinds of materials.

Technical Parameter

Model XFS-180S Horizontal Doypack Packing Machine
Machine dimensions 6000 × 1100 × 1500(L × W × H) mm
Weight 2200kg
Electric supply AC380V, 50Hz
Power 8kW
Air supply 0.5MPa
Air consumption 200NL/min
Packaging capacity 40 to 60ppm
Wide size 90 mm-180 mm
High size 110 mm-260 mm
Max. filling capacity 1000ml

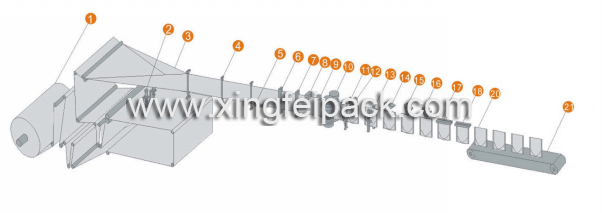

Packing Process of XFS-180S Horizontal Doypack Packing Machine


1.Film unwind 5.Bottom seal 9. Tear notch 13.Pouch opening 17. Top seal1
2.Bottom hole punching 6.Vertical seal1 10.Servo Bag puling 14.Air flushing 18. Top seal2
3.Bag forming 7.Vertical seal2 11.Cutting Unit 15.Filling1 19.Finished product
4.Film guide 8. Color scale detection 12.Pouch catching 16.Filling2 20.Outlet

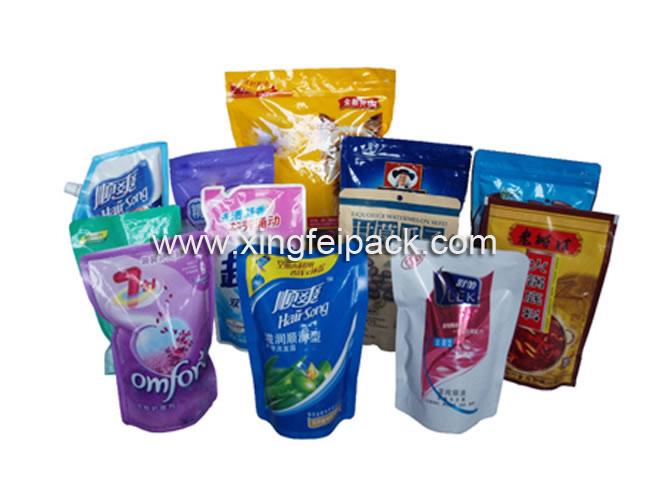

Pouch Sample of Automatic Doypack Packing Equipment
