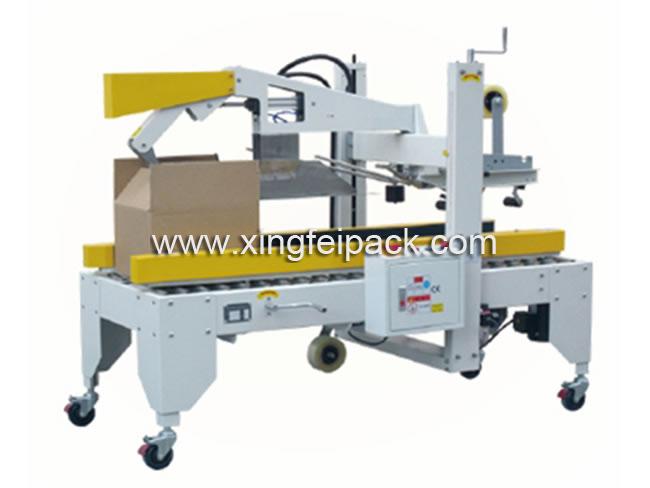

This automatic carton sealing machine adopts imported electrical parts, which is equipped with protection device for the cutter to avoiding incident.
Application
This automatic case packing machine is used for sealing the carton by tape after production packed into the carton, which is suitable for food, beverage, daily products, chemistry, pharmacy, etc.
Features of Automatic Carton Sealing Machine
1. Manually adjust the width and height according the carton size
2. Automatically fold the top flaps and attach the tape both top and bottom.
3. Alarm and stops when lack of tape and door opens.
4. Automatic case packing machine can be used individually or combined with the packaging line.
Parameters of Automatic Carton Sealing Machine
Carton Size
(L)200 to 500 (W)220 to 420 (H)180 to 500 mm
Table size
650 to 800 mm
Sealing speed
18 to 25carton/min
Dimension (L×W×H)
2300 × 650 × 1500 mm
Power supply
110V, 220V single phase, 50/60Hz
Air source
5kg/ cm3
of the tape
48mm, 60mm, 72mm (alternative use)
Weight
400kg
