Model: XFG-200
Description

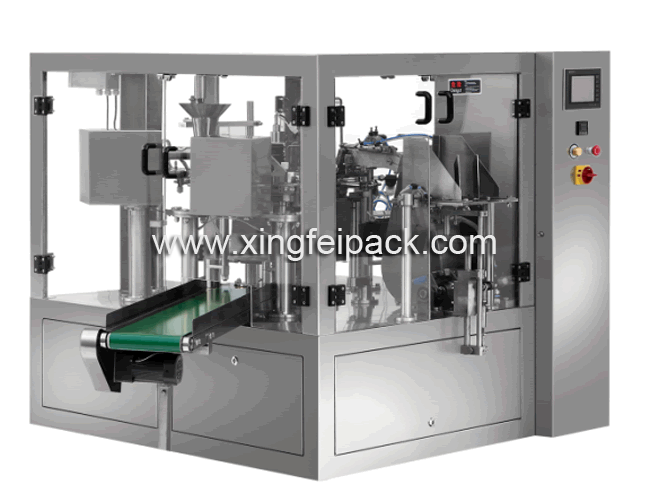

XFG-200 pre-made pouch filling and sealing machine has higher speed and wider application by adopting the precise and stable bag-nipping structure and eight working station. While the bag size is different, it is easy to operate the equipment by using the handle shank to adjust the width of the bag-nipping claw.
Application
Automatic rotary packaging equipment is used for the flat bag, standup bag, bag with zipper, and the machine can fill and seal different granule, powder and the liquid products by matching with different measuring system.
Technical Parameter
|
Model
|
XFG-200 Pre-made Pouch Filling and Sealing Machine
|
|
Capacity
|
30 to 50 bag/min, according to product type and characteristics
|
|
Bag Size
|
(L): 100 to 300 mm (W): 100 to 200 mm
|
|
Filling weight
|
Up to 1000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply
|
AC 380V ±10%, 3-phase 50Hz
|
|
Power Consumption
|
2.0 kW
|
|
Air consumption of automatic rotary packaging equipment
|
0.2 m3/min at 5 to 8 kgf/cm2 Air compressor is supplied by customer
|
|
Machine Weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1340 × 1895 × 1435 mm
|

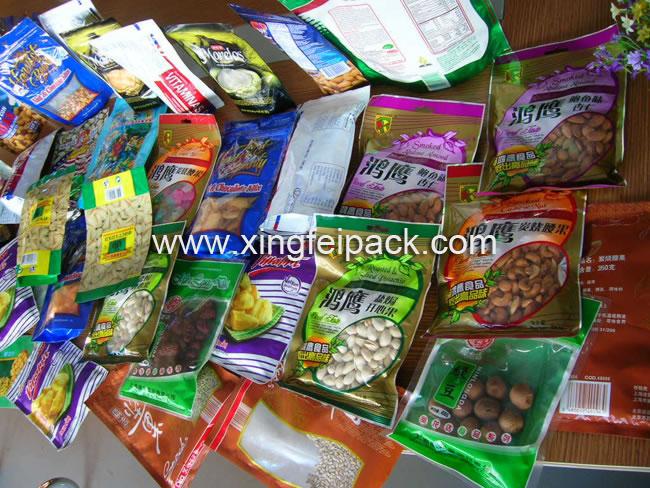

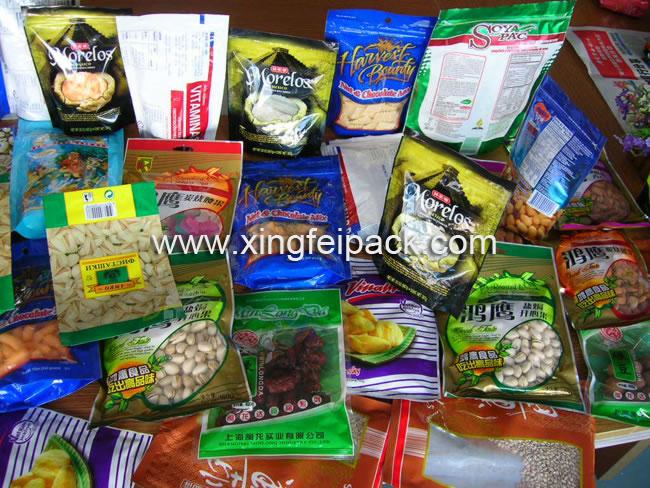

Bag Samples of Pre-made Pouch Filling and Sealing Machine
