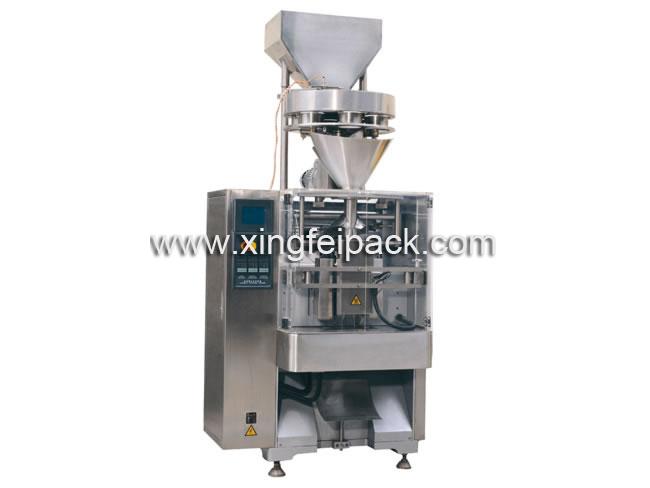

Automatic Salt Packing Machine

Model: XFL

Description

Automatic salt packing machine can combined with weighing device, material feeder, bag making, date coding, etc. The wrapping material is all kinds of multilayer heat-sealable films. Match with different filling head, the machine can pack powders, granule, liquids, and pastes in three side or four side sealed sachets.

Application

This automatic salt packing machine can pack the powder or granule type common salt. Its applicable packing materials include OPP/CPP, OPP/PE, PET/VMPET/PE, PET/VMCPP and other complex materials.

Features

1. According for the enterprise safety management requirement, the equipment is equipped with automatic safety protection system.
2. Safety and accurate film conveying, highly precision bag length by equipping with the servo-driving
3. Our automatic salt packing machine features compact structure, steady capacity and easy operation.
4. The intellectual temperature controller guarantee the seal looks flat and beautiful.
5. The part touch with the food is made of stainless 316L, and the other part is made of 304 Stainless Steel.

Technical Specification of Vertical Salt Packing Equipment

Finished bag size	Length	80 to 300 (mm)
	width	80 to 200 (mm)
Capacity		35 to 55 (bag/min)
General Power		4 (kW)
Total Weight		500 (kg)
Outer Dimensions		1800 × 1040 × 2800 (mm)
Power Supply Type		220V, 50Hz
Max. Packaging Film		420 (mm)
Air Compressing Quantity		6 kg/cm2, 0.4 m3/min

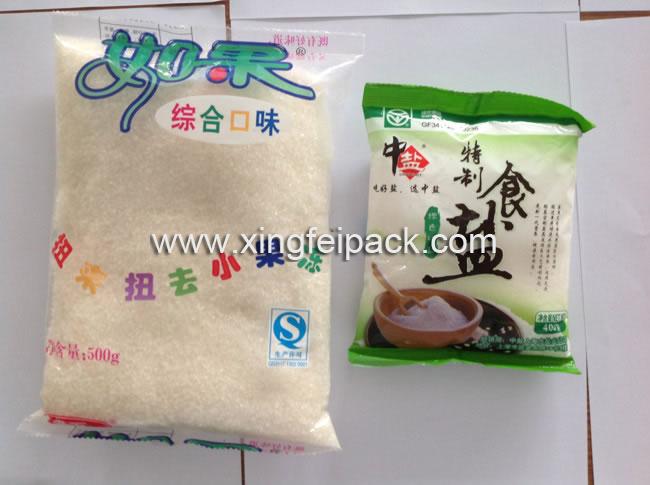

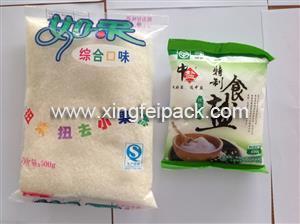

Packing Samples of Automatic Salt Packing Machine
