Description

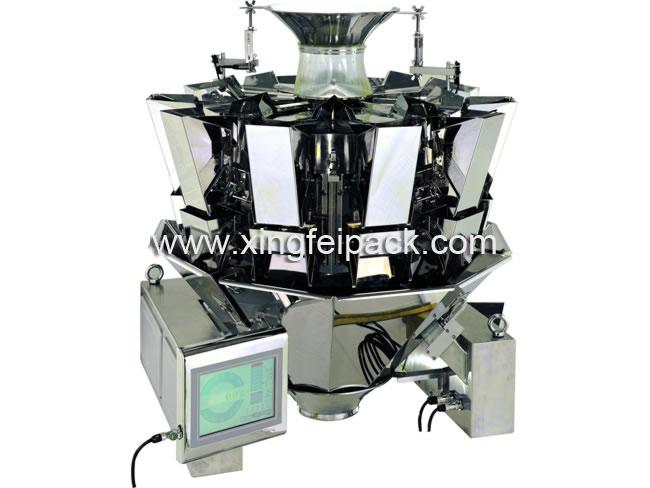

Multi-head weigher is dosing and weighing of grain, chip, bar or irregular shaped material, such as candy, sunflower seed, potato chip, happy fruit, peanut, jelly, freezing rice dumpling, biscuit, chocolate, nut, pet food, puffed food, small metal parts and plastic parts, etc.
Features
1. Multi-head weigher is with 10 buckets and high precision cell load.
2. We can adjust the opening and closing speed of hopper door according to the features of material, which can prevent crashing and damaging of material.
3. The 10 head weighing machine is quite running, stable action and long life by adopting the servo motor. Measure error is about 1.5g.
Parameters of Multi-head Weigher
|
Max. weight
|
1000g
|
|
Weighting range
|
14 to 1000g
|
|
Weighting accuracy
|
±0.3 to 1.5g
|
|
Weighting capacity
|
Max. 3000cc
|
|
Weighing speed
|
Max. 60bag/min
|
|
Weighing cell load
|
load cell
|
|
Type of weighing setting
|
50 types
|
|
Control section of 10 head weighing machine
|
Fluorescent light display tube (256 × 64 pixel)
|
