Model: XF-BL
Description

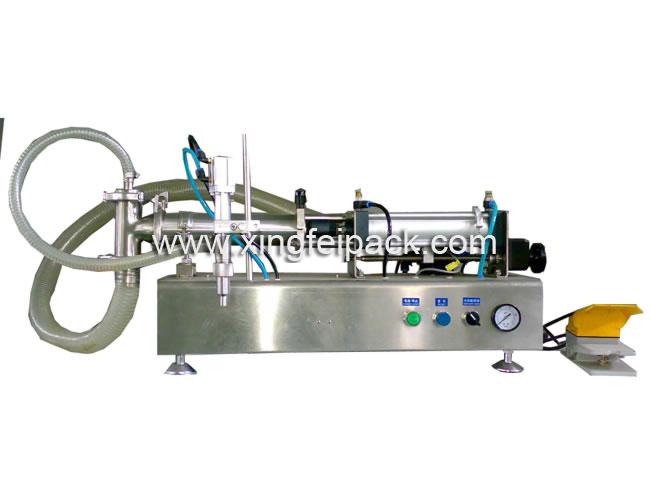

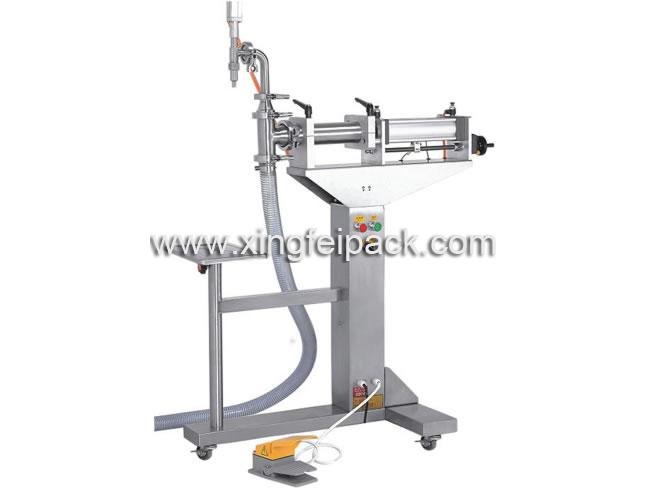

The semi automatic liquid filling machine adopts import elements, which is suitable for few amount and multiple products. It is made of stainless steel, which meet GMP standard.
Features of Filling and Sealing Equipment
1. Filling Precision is up to +-1%.
2. The equipment is easy to operate and maintain. Filling volume is easy to adjust.
3. Manual and automatic transmission is optional.
4. Dismantle and install is convenient and easy to clean.
Parameters of Semi Automatic Liquid Filling Machine
|
Model of filling and sealing equipment
|
Filling range(ml)
|
Production (pcs/m)
|
Air Compressor Capacity
|
Power supply
|
Dimensions (mm)
|
Weight
|
|
XF-BL 100
|
10 to 100
|
20 to 25
|
5.7 ft³/min
|
220V / 50Hz
|
980 × 550 × 1200
|
35 kg
|
|
XF-BL 250
|
30 to 250
|
20 to 25
|
5.7 ft³/min
|
220V / 50Hz
|
1000 × 550 × 1250
|
38 kg
|
|
XF-BL L 500
|
100 to 500
|
12 to 18
|
5.7 ft³/min
|
220V / 50Hz
|
1100 × 550 × 1300
|
38 kg
|
|
XF-BL 1000
|
200 to 1000
|
8 to 14
|
5.7 ft³/min
|
220V / 50Hz
|
1300 × 700 × 1350
|
45 kg
|
|
XF-BL L 2000
|
500 to 2000
|
6 to 10
|
8.8 ft³/min
|
220V / 50Hz
|
1650 × 700 × 1400
|
55 kg
|
