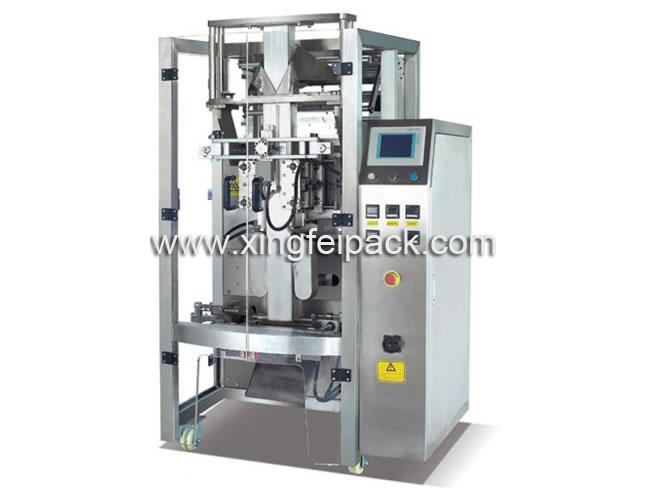

Automatic Vertical Square Bottom Standup Bag Packing Machine
Model: XFL-200C
Description
Automatic vertical square bottom standup bag packing machine is completely standup bag packaging equipment, which adopts PLC and touch panel devices. Match with different filling head, the machine can pack powders, granule, liquids, and pastes in three side or four side sealed sachets. This packing machine can make the pillow type bag with four side sealing (square bottom standup bag), the attractive bag type to satisfy your high demand.
Application
Automatic vertical square bottom standup bag packing machine is used for packing bulk materials such as corn flakes, rice, sugar, biscuits, pet food, fish food, chocolate beans, peanuts, puffed food, etc. Working with different dosing system, the packing machine can be used for filling granule or powder.
Parameters of Stand Up Bag Packaging Equipment
Capacity
Max 50bags/min
Bag size
Front : 70 to 180mm Side : 40 to 100mm of side seal: 5 to 10mm Length: 100 to 350mm
Bag type
Block bottom type
Film
Max. 500 mm
Air consumption
0.8Mpa 0.30m3/min
Power supply
220V, 3.5kW, 50HZ
Dimension
1300 × 1130 × 1900mm
Weight
750 kg
Packing Samples of Stand Up Bag Packaging Equipment
