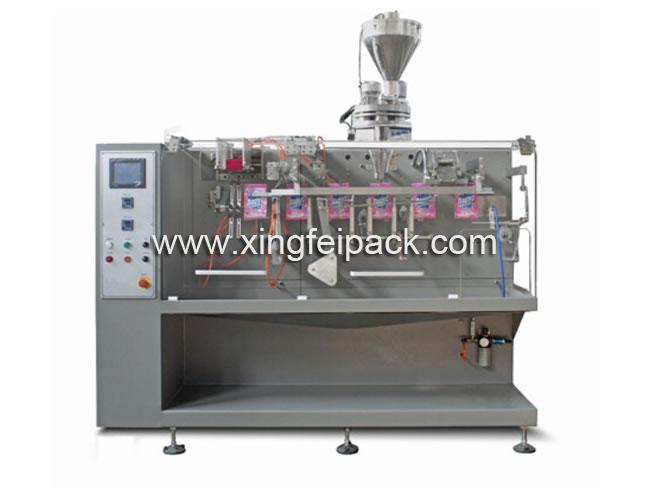

Automatic Horizontal Premade Pouch Packing Machine

Model: XFSG-180

Description

Shanghai Xingfei Packaging Machinery Co., Ltd. Which is an integrated manufacturing enterprise with the ability to designing, developing, manufacturing, installing and commissioning of packaging machinery, food equipment and pre-made pouch packing machine with various types and specifications

Application

Horizontal pre-made packaging machine is applied for powdery and granular products: milk powder, protein powder, coffee powder, baking powder, granule sugar, glucose, MSG, juice powder, granular and powder additive, granule medicine, talcum powder, dyes, spices, veterinary drugs, pesticides, detergent powder, etc, and liquid and pasty products: tomato paste, fruit jam, shampoo, liquid fertilizer, pesticides, etc.

Features

1.It adopts PLC human-machine interface and all the actions are driven by air cylinder. The system for going down film uses servomotor control, so that we can adjust dimension of film randomly.
2. It has the advantage of high efficiency, applicability and stability.
3. The package is beautiful and the sealing strength is high. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, feedstuff industry.

Technical Parameter of Pre-made Pouch Packing Machine

Machine dimensions (mm) 1990 × 970 × 1390(L × W × H)
weight 700 kg
Electric supply AC380V, 50Hz
power 1.8kW
air supply 0.5MPa
Air consumption 200NL/min
Packaging capacity 30 to 60ppm
Wide size 60 mm to 180 mm
High size 80 mm to 225 mm
Max. filling capacity 500ml

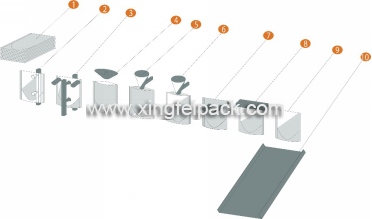

Packing Process of Pre-made Pouch Packing Machine


1.Premade pouch stack 3.Pouching opening 5. Filling1 7.Pouch stretching 9.Finished product
2.Flip-out pouch-packing unit 4. Air flushing 6. Filling2 8. Top seal 10. Outlet

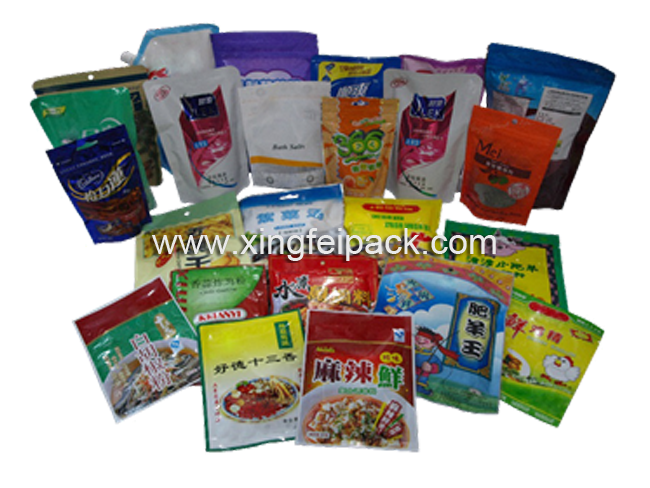

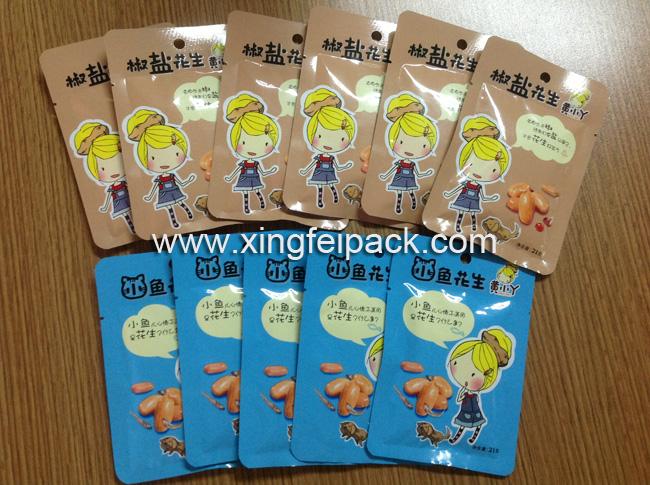

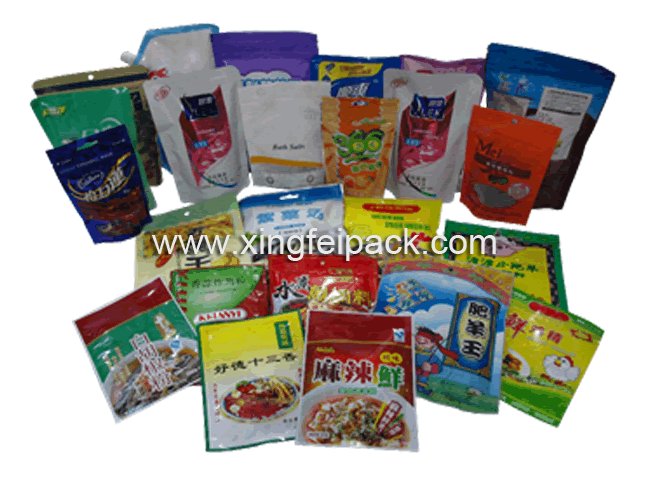

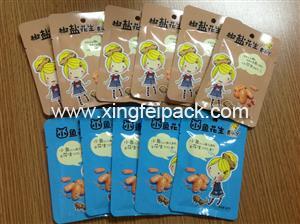

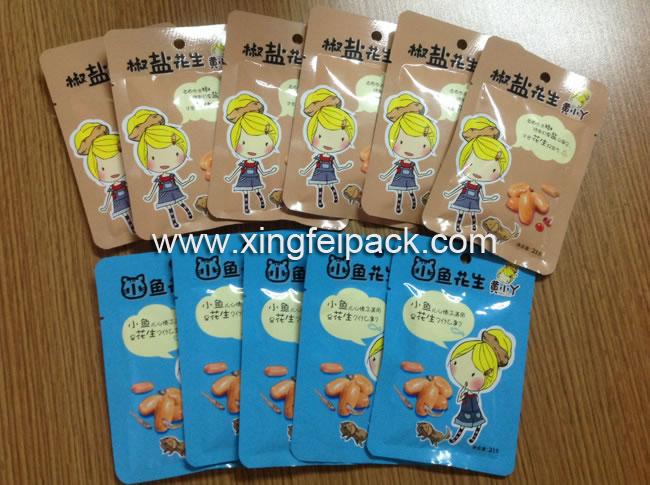

Sample Bag of Horizontal Pre-made Packaging Machine
