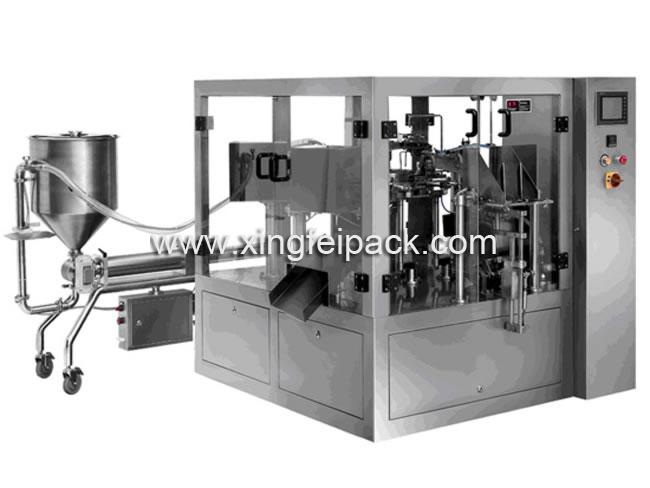

Automatic Premade Pouch Liquid Filling And Packing Equipment

Model: XFG-Y

Description

XFG-Y pre-made pouch liquid filling equipment is used for the flat bag, standup bag, and bag with zipper. Lantoky Packaging Machinery benefits from the experience of foreign success story, and combines the self condition to develop all kinds of high-end vertical automatic packing machine, horizontal automatic packing machine and automatic pre-made doypack filling machine.

Application

This pre-made pouch liquid filling equipment is suitable filling and sealing for the liquid and paste, such as washing liquid, detergent, yellow wine, sauce, vinegar, juice, beverage, ketchup, chilly sauce, etc.

Features

1. While the bag size is different, it is easy to operate the machine by using the handle to adjust the width of the bag-nipping claw.
2. The automatic pre-made doypack filling machine has higher speed and wider application by adopting the precise and stable bag-nipping structure and eight working station.

Technical Parameter

Model	XFG-Y Pre-made Pouch Liquid Filling Equipment
Capacity	30 to 50 bag/min according to product type and characteristics
Bag Size	(L): 100 to 300mm (W): 100 to 200 mm
Filling weight	Up to1000 g/bag (max)
Bag sealing	Sealing by heat and pressure
Power supply	AC380V±10%, 3-phase 50Hz
Power Consumption	2.0 kW
Air Consumption	0.2 m3/min at 5 to 8 kgf/ cm2 Air compressor is supplied by customer
Machine Weight	1200 kg
Dimension (W×L×H)	1140 × 1500 × 1560 mm

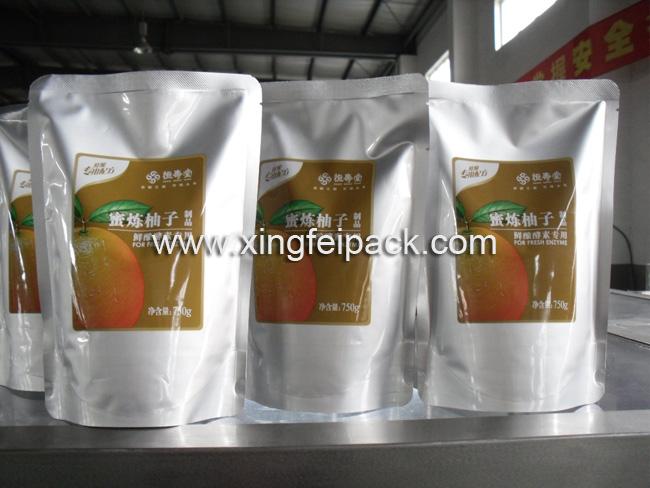

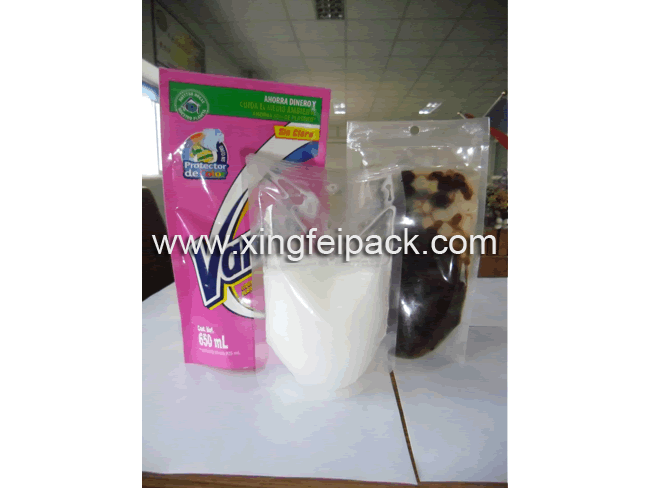

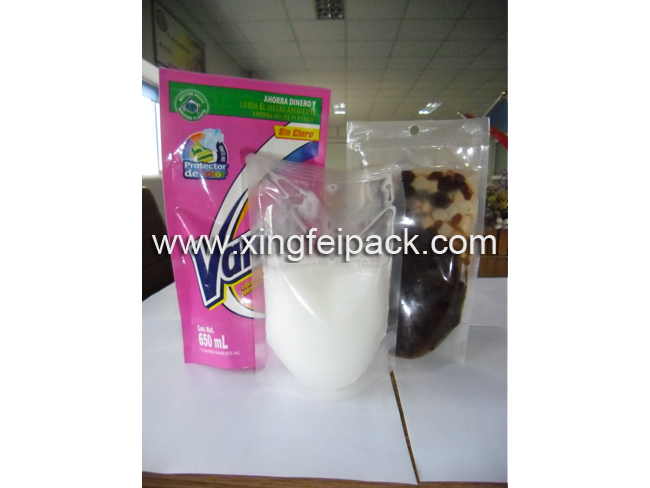

Samples of Automatic Premade Pouch Liquid Filling And Packing Equipment
