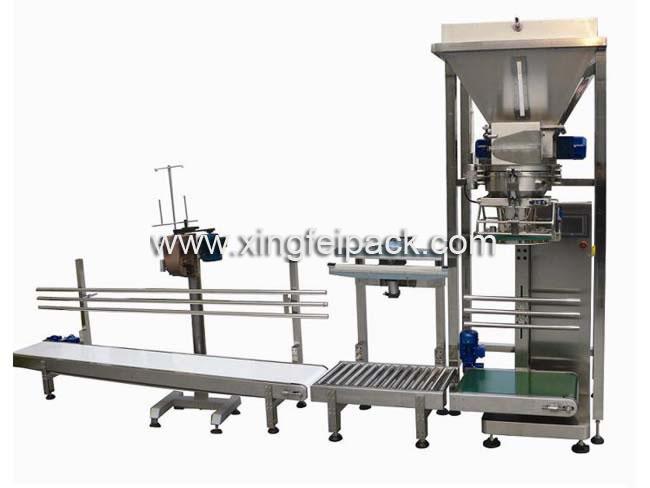

Semi Automatic Big Bag Powder And Granule Filling And Packing Machine
Model: XFF-D
Description
This semi automatic big bag powder filling machine can complete following work of weighing, filling, nipping-bags, sealing bags, and conveying.
Application
Powder packing machine is designed according the GMP standard, which fits the fluidic or low fluidity materials, such as milk powder, fodder, rice powder, white sugar, coffee powder, monosodium glutamate, solid beverage, dextrose, pharmaceuticals, and agriculture pesticide, granular additive, dyestuff, etc.
Features
1. In particular, the semi automatic big bag powder filling machine accepted the certification of GMP, food sanitation, and adapt to the anticorrosion materials.
2. The whole structure of the machine is made of stainless steel except the motor, cylinder, electrical accessories, pneumatic components, sewing machine.
3. The screw can be directly inserted and draw out alone for washing, which is easy to remove the residual material.
Technical Parameters
Model
XFF-D Semi Automatic Big Bag Powder Filling Machine
Metering Mode
Weighing(with the packing bag)
Packing Weight
5 to 25, 25 to 50 kg
Feeding Mode
Double screw feeder (arbitrator feeder)
Filling Accuracy
≤ ±0.2%
Sealing Machine
Heat sealing machine + sewing machine
Filling rate of powder packing machine
≤ 3 Bags/min
Power Supply
3P/380V(1P/220V according your requirement) 50 to 60Hz
Total Power
3.9 kW (with out the power for the air supply)
Total Weight
300 kg
Overall Dimensions
4500 × 1600 × 2400 mm

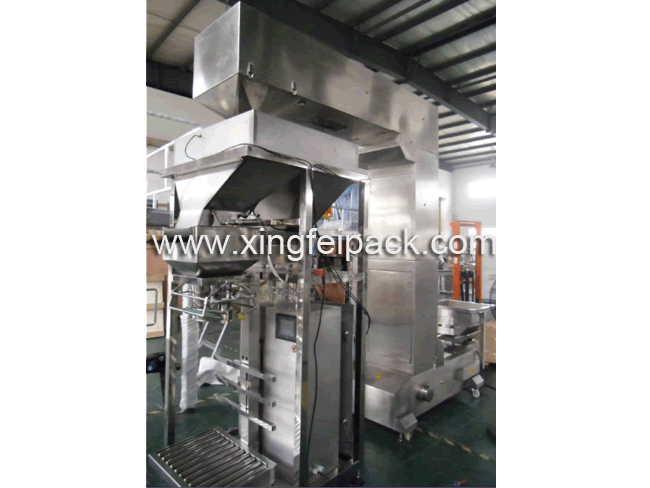

Samples of Semi Automatic Big Bag Powder Filling Machine
