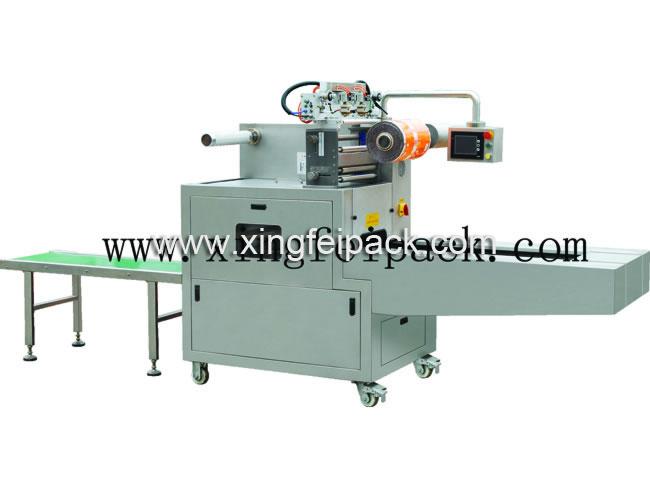

Model: XF-MAP
Description
Automatic tray type modified atmosphere packing machine is also be named as MAP tray sealer, it is suitable for keeping pickles, fresh vegetable, meat, seafood and etc. in normal temperature. It is a vacuum packing machine that is popularly used in food at present, combining the domestic and international advanced technology to research and develop. It is the special equipment of keeping food fresh, which will make cup or box vacuum then filling nitrogen mixing gas inside.
Application
Map tray sealing equipment is suitable for keeping pickles, fresh vegetable, meat, seafood in normal temperature. It is a vacuum packing machine that is popularly used in food at present, combining the domestic and international advanced technology to research and develop.
Work Theory
Automatic modified atmosphere packing machine uses the imported vacuum pump to make the vacuum treatment on the product, then fill the N2 or O2 to keep the food fresh at last make the sealing of the tray.
Features
1. The main parts adopt stainless material, which has the advantages of sanitary use and beautiful appearance.
2. Photoelectric tracking is selection of color printing film and light film to packing the products.
3. The map tray sealing equipment adopts imported programmable control with touch screen.
4. The well-known brands vacuum unit features stable performance and durable quality.
5. Nitrogen or other gases mixed can be recharged on the base of vacuum drying.
Parameters of Automatic Modified Atmosphere Packing Machine
|
Model
|
XF-MAP150BL
|
XF-MAP200BL
|
XF-MAP150CL
|
|
Packaging Box Dimension L × W × H(mm)
|
200 × 150 × 60
|
250 × 200 × 70
|
200 × 150 × 60
|
|
Max. of Film (mm)
|
380
|
550
|
600
|
|
Max. Diameter of Film(mm)
|
250
|
250
|
250
|
|
Packaging speed (box/h)
|
Q—800-1200
P--1200-1700
|
Q—700-1000 P--1000-1500
|
Q—1200-1800
P--1800-2500
|
|
Voltage
|
AC220V/50HZ/
|
AC220V/50HZ
|
AC220V/50HZ
|
|
Consume Power(kW)
|
1.8 (single phase)
|
3.5
|
2.8 (single phase)
|
|
Gas Replace Rate (%)
|
|
|
|
|
Gas Filling Accuracy (%)
|
≤2
|
≤2
|
≤2
|
|
Machine Size L × W × H(mm)
|
2400 × 900 × 1700
|
2400 × 1100 × 1700
|
2400 × 110 × 1700
|
|
Weight (kg)
|
500
|
600
|
600
|

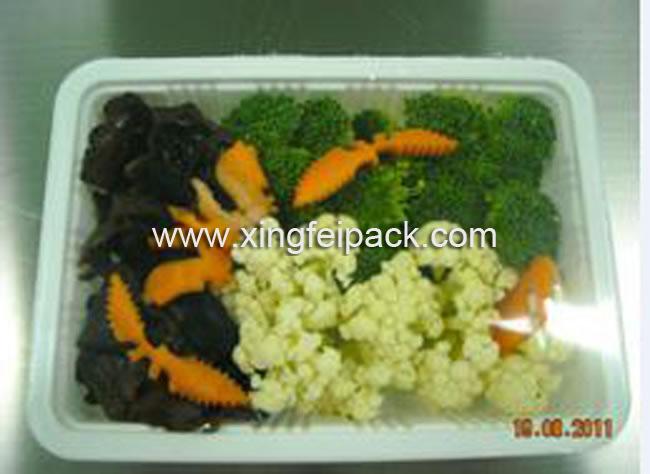

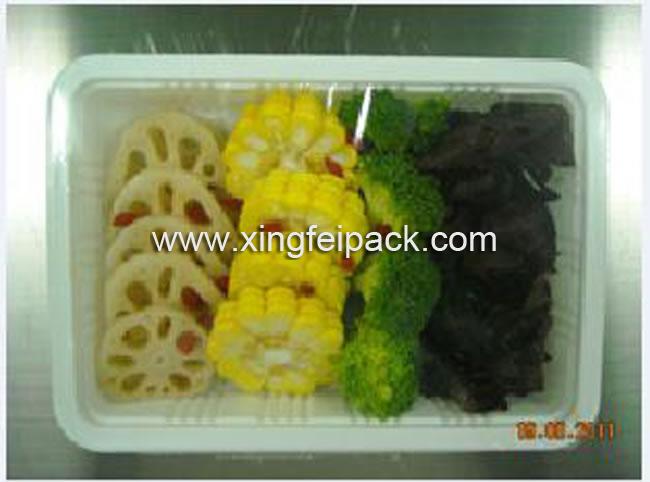

Packing Samples of Map Tray Sealing Equipment
