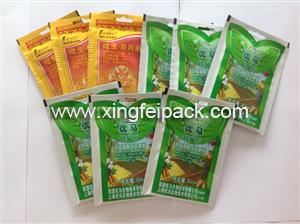

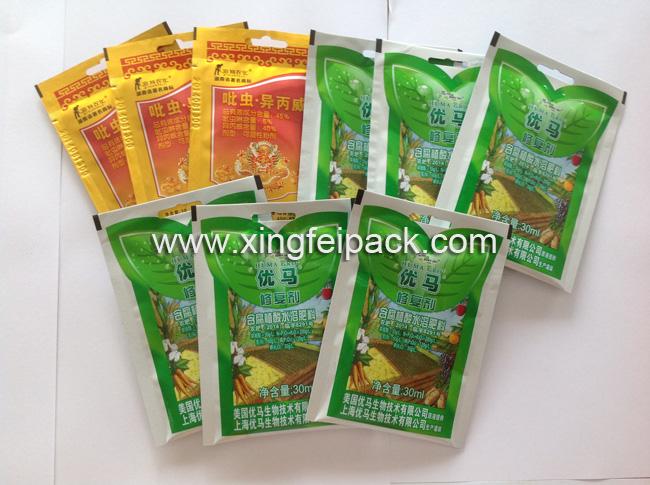

Sample of Automatic Liquid/Cream Horizontal Packing Machine

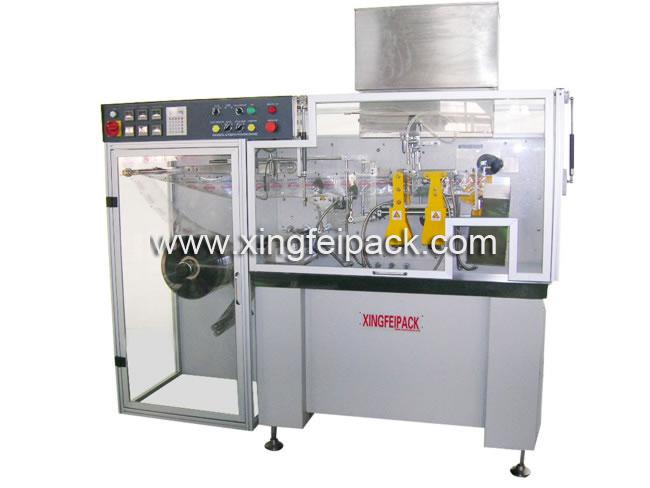

Model: XFS-110Y

Description

XFS-110Y automatic liquid packing machine is a completely new bag form horizontal fill seal packing machine which is controlled by PLC with human-machine interface display. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.

Application

Horizontal liquid packaging machinery is widely used for various kinds of liquid packaging, such as honey, tomato paste, ketchup, sauce, shampoo, hair conditioner, jelly bar, fruit jam, yoghurt, facial cream, liquid chocolate, ice cream pastiest milk, soybean milk, fruit juice, beverage, ice drink, soy sauce, vinegar and wine.

Features

1. XFS-110Y automatic liquid packing machine is controlled by PLC with human-machine interface display, which is easy to operate.
2. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
3. With the high sealing strength and firm package, there are never the ragged edges.
4. Horizontal liquid packaging machinery is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.
5. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
6. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.

Technical Parameter

Model	XFS-110Y Automatic Liquid Packing Machine
Machine dimensions	2060 × 750 × 1400(L × W × H) mm
weight	About 600kg
Electric supply	AC380V, 50Hz
power	2kW
air supply	0.5MPa
Air consumption	0NL/min
Packaging capacity	40 to 80ppm
	50 mm to 110 mm
Length	50 mm to 120 mm
Max. filling capacity	60 ml

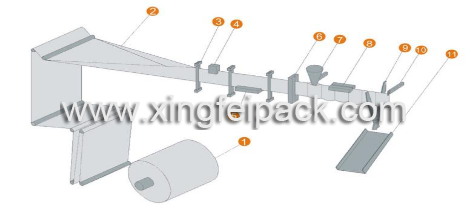

Packing Process of Horizontal Liquid Packaging Machinery

1.Film unwind	3. Film guide	5.Bottom seal	7.Open and filling	9.Cutting	11.Outlet
2.Pouch forming	4. Color scale detection	6. Vertical seal	8.Top seal	10.Pouch pulling

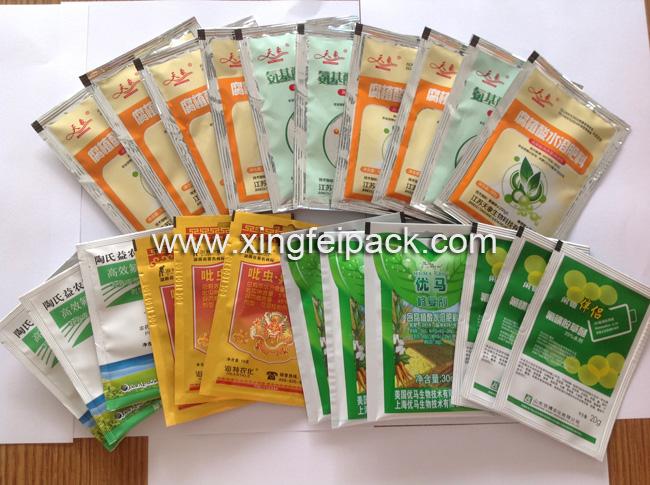

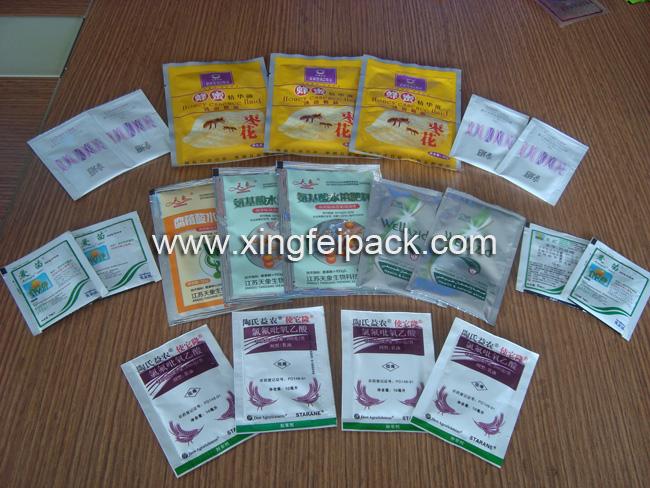

Sample of Automatic Liquid/Cream Horizontal Packing Machine
