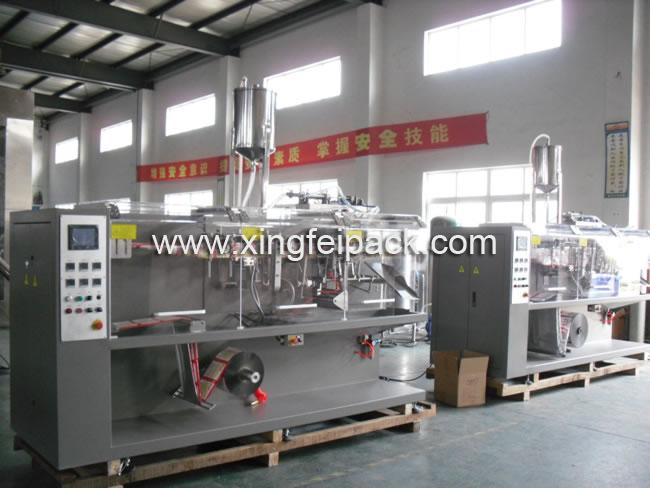

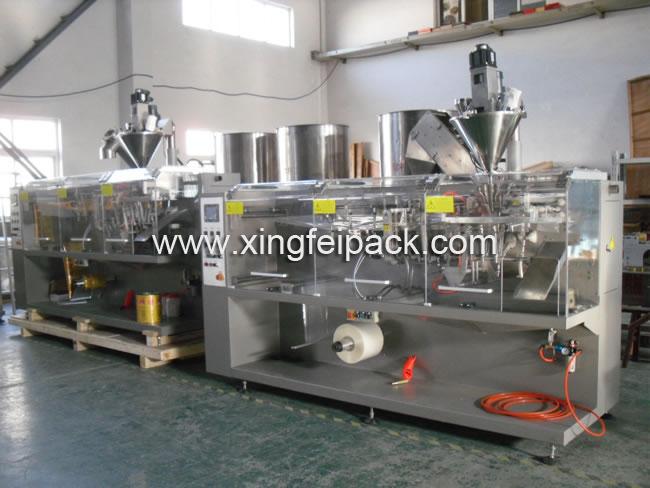

The automatic horizontal form fill seal machine is widely used in the packing fields of food, pharmaceuticals, house chemicals, cosmetics, etc. And our packing equipment is suitable for powdery, granular and liquid products. Three-side or four-side seal of pouch is available with kinds of blanking devices to packing different materials.
Application
The horizontal packing equipment is used for powdery and granular products: milk powder, protein powder, coffee powder, baking powder, granule sugar, glucose, MSG, juice powder, granular and powder additive, granule medicine, talcum powder, dyes, spices, veterinary drugs, pesticides, detergent powder, etc. Liquid and pasty products: tomato paste, fruit jam, shampoo, liquid fertilizer, pesticides, etc.
Features
1. The automatic horizontal form fill seal machine is controlled by PLC with human-machine interface display, which is easy to operate.
2. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
3. Horizontal packing equipment is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.
4. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
5. With the high sealing strength and firm package, there are never the ragged edges.
Technical Parameter
Model

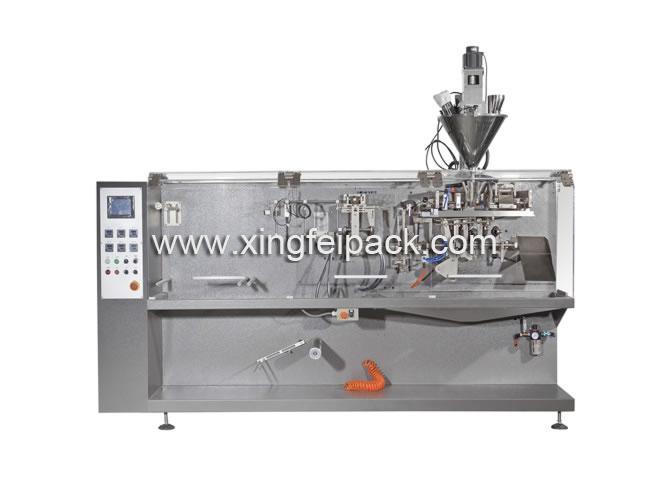

XFS-150 Automatic Horizontal Form Fill Seal Machine
Machine dimensions
2850 × 970 × 1500(L × W × H) mm
Weight
900 kg
Electric supply
AC380V 50Hz
Power
3.5 kW
Air supply
0.5MPa
Air consumption
100NL/min
Packaging capacity
40 to 80ppm
of horizontal packing equipment
60mm to 140 mm
Length
80mm to180 mm
Max. filling capacity
160 ml

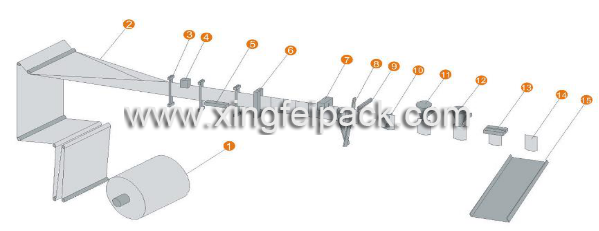

Sample of Automatic Horizontal Form Fill Seal Machine
1. Film unwind
4. Color scale detection
7. Tear notch
10. Pouch opening
13. Top seal
2. Film forming
5. Bottom seal
8. Cutting
11. FillingⅠ
14. Finished product
3. Film guide
6. Vertical seal
9. Pouch pulling
12. FillingⅡ
15. Outlet

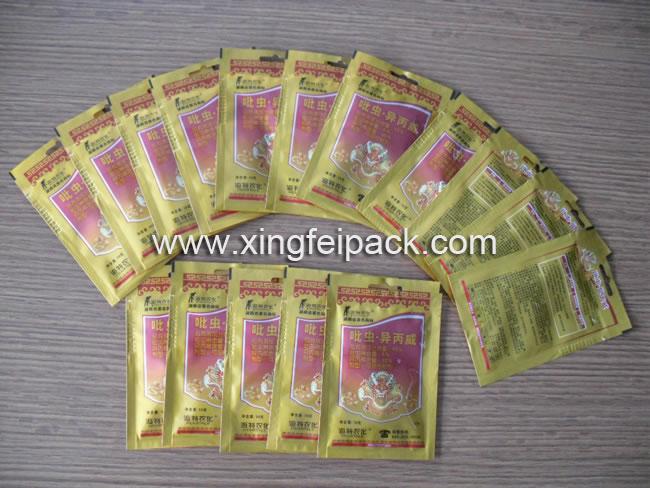

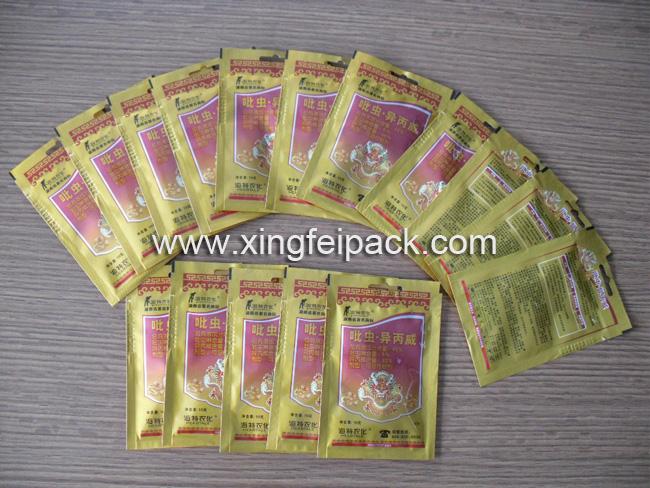

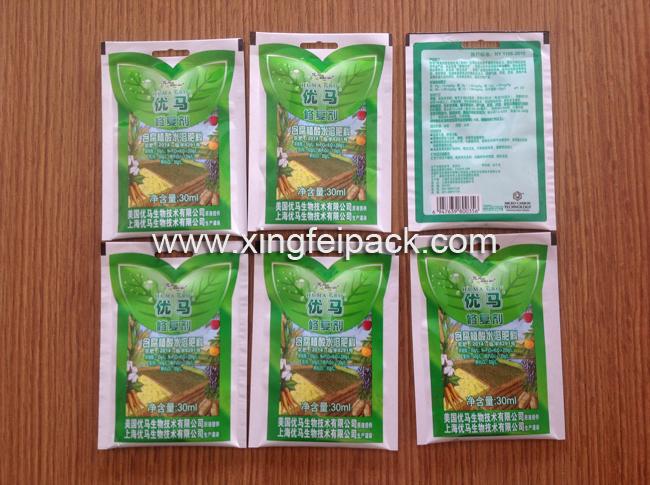

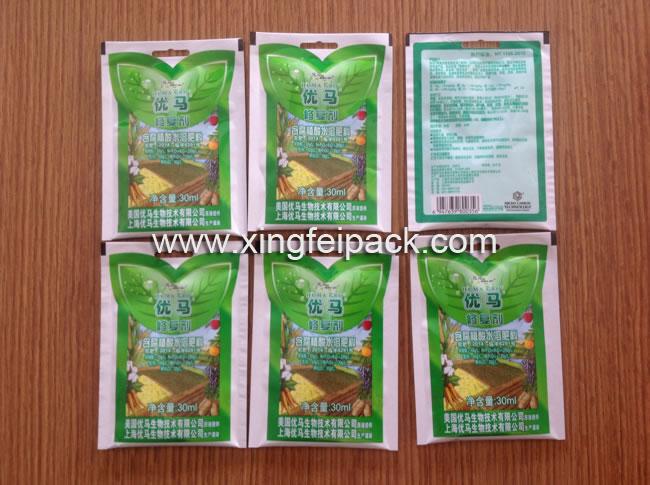

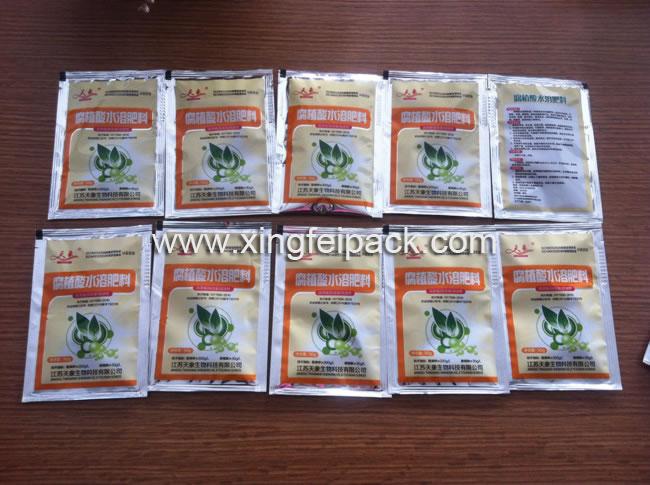

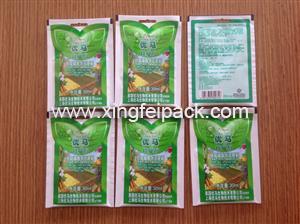

sample of Automatic Horizontal Form Fill Seal Machine
