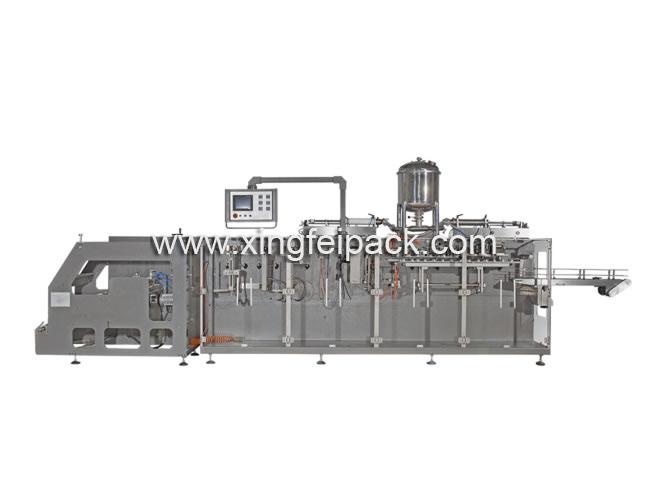

Automatic Horizontal Doypack Stand Up Pouch Machine with Liquid Filler

Automatic Horizontal Doypack Stand Up Pouch Machine with Liquid Filler

Automatic Liquid Filling Machine

Description

We are a professional automatic liquid filling machine manufacturer in China. We have gained the recognition of a large number of clients through years' production experience and marketing and serving experience, and meanwhile we have accumulated abundant experience in terms of products.

Application

Stand up pouch machine is applied for powdery and granular products: milk powder, protein powder, coffee powder, baking powder, granule sugar, glucose, MSG, juice powder, granular and powder additive, granule medicine, talcum powder, dyes, spices, veterinary drugs, pesticides, detergent powder, etc, and liquid and pasty products: tomato paste, fruit jam, shampoo, liquid fertilizer, pesticides, etc.

Character

1. In packaging design, the automatic liquid filling machine has upright and elegant appearance without liquid, powder around the end seal.
2. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
3. With the high sealing strength and firm package, there are never the ragged edges. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.

Technical Parameter of Automatic Liquid Filling Machine

Machine dimensions (mm) 6000 × 1100 × 1500(L × W × H)
Weight 2200kg
Electric supply AC380V 50Hz
Power of stand up pouch machine 8 kW
Air supply 0.5MPa
Air consumption 200NL/min
Packaging capacity 40 to 60ppm
Wide size 90 mm to 180 mm
High size 110 mm to260 mm
Max. filling capacity 1000ml

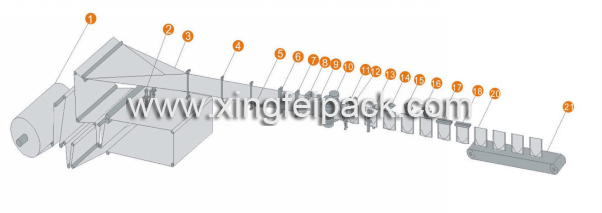

Packing Process of Automatic Liquid Filling Machine


1.Film unwind 5.Bottom seal 9. Tear notch 13.Pouch opening 17. Top seal1
2.Bottom hole punching 6.Vertical seal 1 10.Servo bag puling 14.Air flushing 18. Top seal 2
3.Bag forming 7.Vertical seal 2 11.Cutting Unit 15.Filling1 19.Finished product
4.Film guide 8.Color scale detection 12.Pouch catching 16.Filling2 20.Outlet

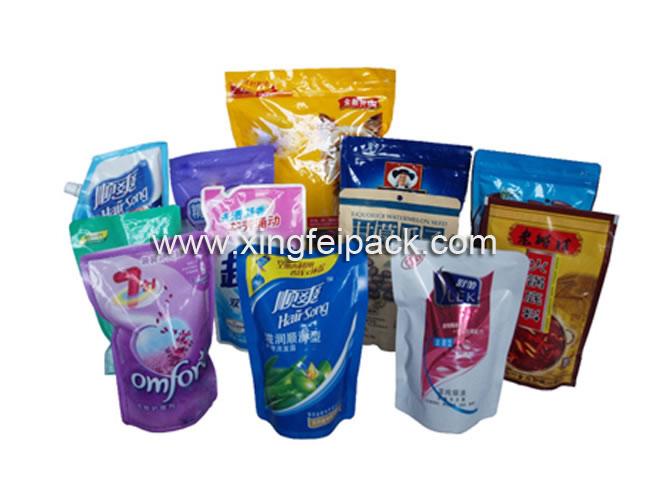

Sample of Automatic Horizontal Doypack Stand Up Pouch Machine with Liquid Filler
