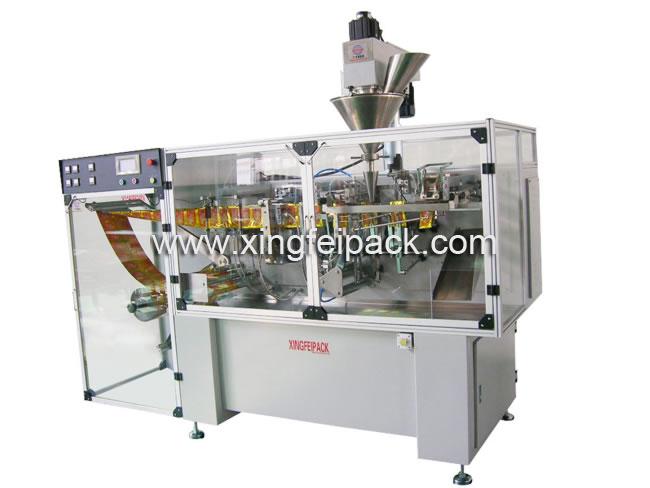

Model:XFS-180
Description
XFS-180 automatic HFFS packing machine (horizontal form fill seal packing machine) is designed for middle size and small size bag, which adopts double working position for blanking. Our horizontal packing equipment is made up of bag-making, dosing, filling and sealing. And the wrapping material is all kinds of multilayer heat-sealable films.
Application
The automatic HFFS packing equipment is widely used in the packing fields of food, pharmaceuticals, house chemicals, cosmetics, etc. And it is suitable for powdery, granular and liquid products. Three-side or four-side seal of pouch is available with kinds of blanking devices to packing different materials.
Features
1. In packaging design, our XFS-180 automatic HFFS packing machine has upright and elegant appearance without liquid, powder around the end seal.
2. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
3. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
4. The horizontal packing equipment is controlled by PLC with human-machine interface display, which is easy to operate.
5. With the high sealing strength and firm package, there are never the ragged edges. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.
6. Match with different filling head, the machine can pack powders, liquids, pastes, granule in three side or four side sealed sachets.
Technical Parameter
|
Model
|
XFS-180 Automatic HFFS Packing Machine
|
|
Machine dimensions
|
3500 × 970 × 1500(L × W × H) mm
|
|
Weight
|
1400 kg
|
|
Electric supply
|
AC380V 50Hz
|
|
Power
|
4.5 kW
|
|
Air supply
|
0.5MPa
|
|
Air consumption
|
200NL/min
|
|
Packaging capacity
|
40 to 80ppm
|
|
Wide size
|
60 mm to 180 mm
|
|
High size
|
80 mm to 225 mm
|
|
Max filling capacity
|
400 ml
|

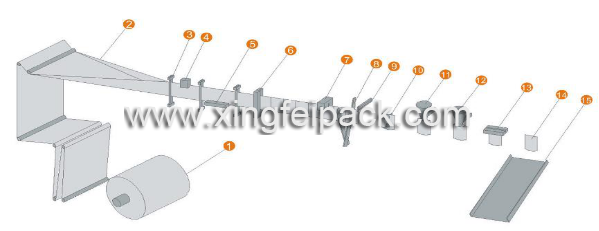

Packing Process of XFS-180 Automatic HFFS Packing Machine
|
1. Film unwind
|
4. Color scale detection
|
7. Tear notch
|
10. Pouch opening
|
13. Top seal
|
|
2. Film forming
|
5. Bottom seal
|
8. Cutting
|
11. FillingⅠ
|
14. Finished product
|
|
3. Film guide
|
6. Vertical seal
|
9. Pouch pulling
|
12. FillingⅡ
|
15. Outlet
|
sample of Horizontal Packing Equipment
