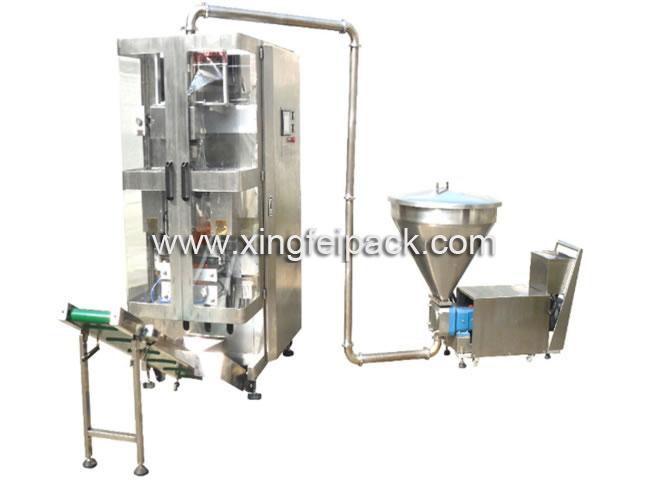

Model: XFL-Y600
Description
XFL-Y600 big bag liquid packing machine is widely used for many materials. The length can be adjusted, and several different specification machines can be equipped in terms of packing specification and weight of the bag.
Application
XFL-Y600 big bag liquid packing machine is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, and chemical industry, such as sweetened bean paste, lotus paste, fruit jam, Chinese watermelon jam, peanut butter, Chili sauce, salad sauce, cheese, peanut oil, soy sauce, wine, mineral water, liquid and Non-food detergent, grease.
Features
1. Control part adopts Japan Mitsubishi PLC Program logic system, which has stable performance and self-checking function.
2. Running pumping adopts imported 316 mirror pipe, which benefits fillings conveyor. The pipe connection uses field joints, which is easy-clean and quick dismounting.
3. XFL-Y600 big bag liquid packing machine is controlled by PLC with human-machine interface display, which is easy to operate and maintain. It also has advanced functions like automatic stop, alarm signal.
4. Piston pump filling system of automatic liquid packaging machine cannot rotate, squeeze, damage, or color fillings.
5. Advanced control program thorough long term test can reduce the packing weight error to six per thousand, which much less than standard weight error of national regulation.
Technical Parameters of XFL-Y600 Big Bag Liquid Packing Machine
|
Model
|
XFL-Y600I
|
XFL-Y600II
|
|
Bag
|
100 to 280mm
|
100 to 300mm
|
|
Bag length
|
150 to 480mm
|
150 to 600mm
|
|
Film
|
220 to 590mm
|
220 to 650mm
|
|
Packing material
|
NY/PE
|
|
packing capacity
|
4 to 10bags/min
|
|
Packing volume
|
Max.5000cc
|
Max.10000cc
|
|
Making type
|
Back seal
|
|
Power supply
|
AC, 380V50Hz/60Hz
|
|
Power
|
4.5 kW
|
|
Air pressure
|
0.6 to 0.8 Mpa, 0.006 m3/min
|
|
Dimension (L × W × H)
|
1350 mm × 980 mm × 1980 mm
|
1350 mm × 1080 mm × 2150 mm
|
|
Weight
|
980 kg
|
1080 kg
|

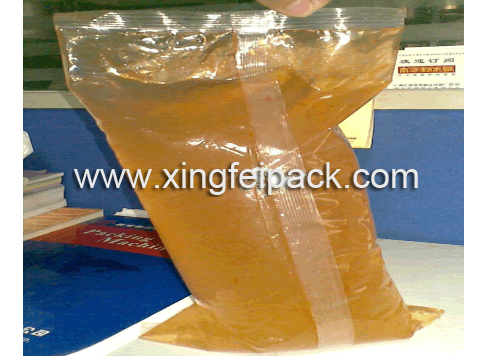

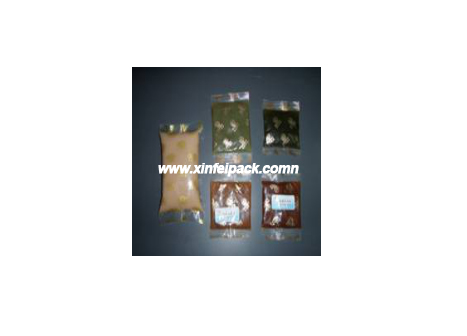

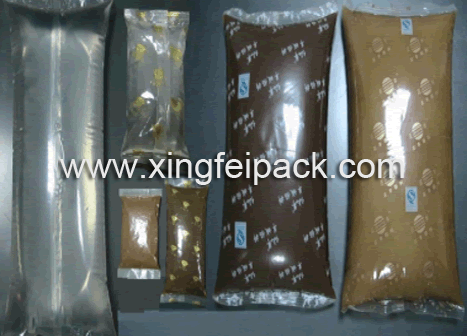

Packing Samples of Automatic Liquid Packaging Machine
