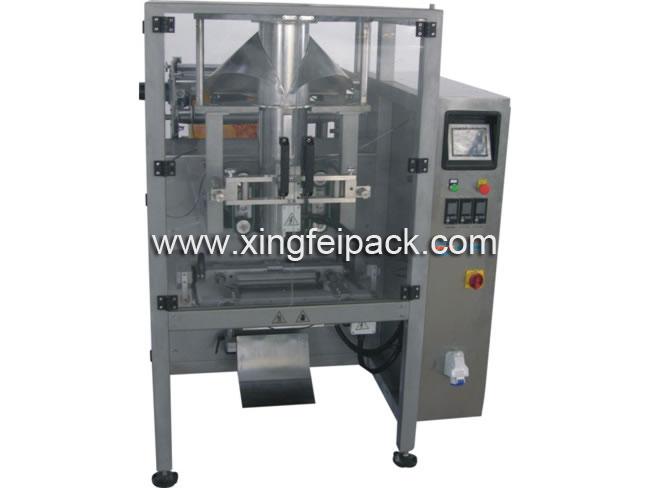

The XFL-300 automatic VFFS packaging machine (automatic vertical form fill seal) is equipped with safety protection, and complies with firm’s safety management requirements. The drive control center composes PLC servo system, pneumatic control system and super touch screen, which maximize the control precision, reliability and intelligent zed level.
Application
The automatic VFFS packaging machine is widely used in the packing fields of food, pharmaceuticals, house chemicals, cosmetics, etc. And it is suitable for powdery, granular and liquid products.
Features of Vertical Packing Machinery
1. Intelligent temperature controller is used to control accurate temperature, which ensures the artistic and neat seal.
2. Touch screen can store the technical parameters of various kinds of products. It is unnecessary to reset while products changing.
3. Error indicating system can help to handle the trouble immediately. Pillow bags and hanging bags are made in terms of customers’ different requirements.
Technical Parameter of Automatic VFFS Packaging Machine
Model
XFL-300
XFL-350
Bag-making Size
(L)100 to 400mm, (W)100 to 300mm
(L)100 to 450mm, (W)100 to 350mm
Packing Speed
25 to 65 Bags/Min
25 to 60 Bags/Min
Power Supply of vertical packing machinery
220V, 50 to 60Hz, 4.0 kW
380 to 220V, 50 to 60Hz, 4.75 kW
Weight
800 kg
8500 kg
Dimension
1200 × 1500 × 1950 (mm)
1250 × 1500 × 2000 (mm)

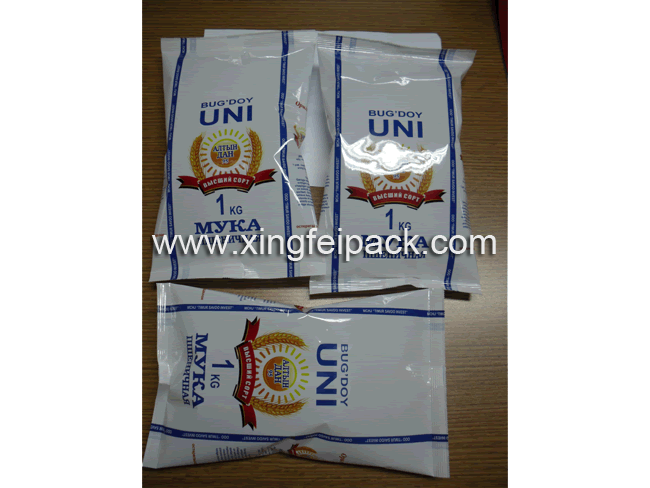

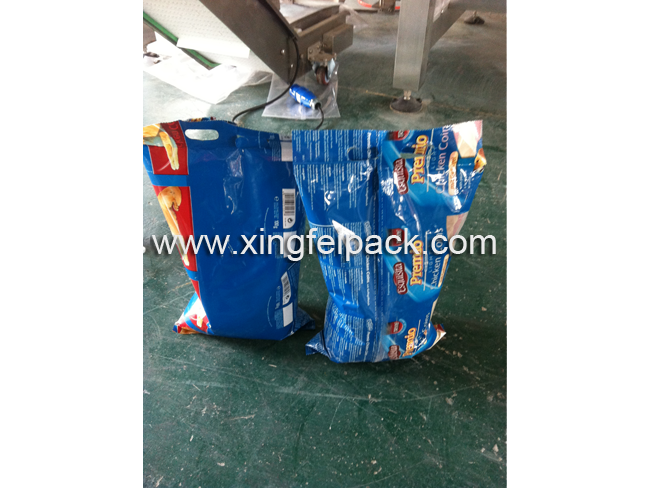

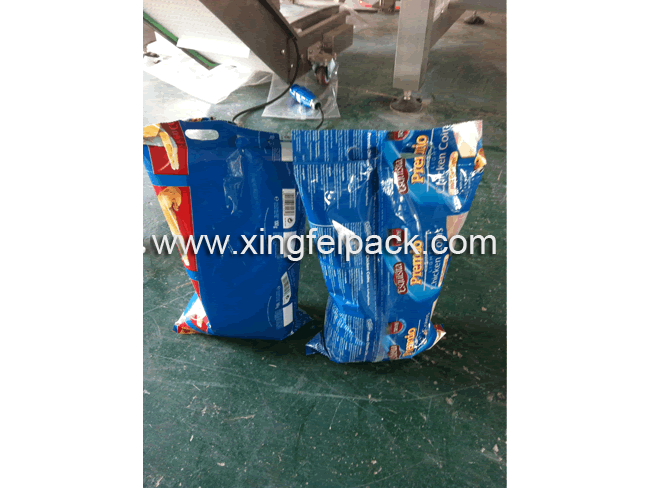

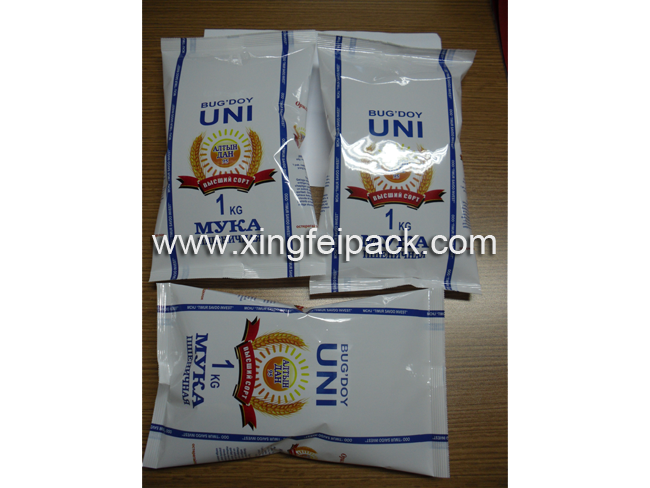

Sample of Automatic VFFS Packaging Machine
