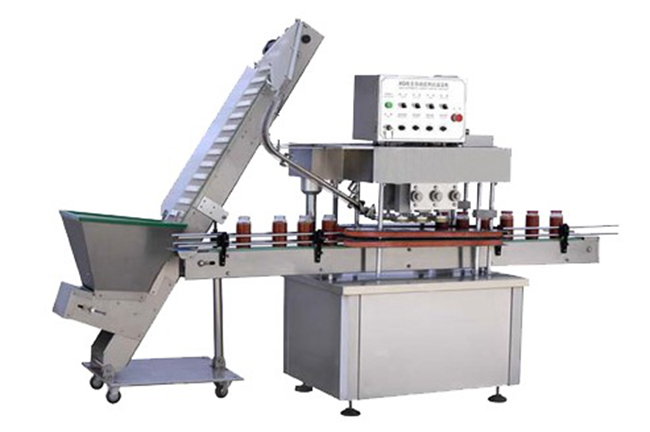

XF-XG Automatic Capping Machine
DescriptionThis automatic capping machine with cap feeder is economical, and easy to operate. This versatile in-line capper handles a wide range of containers and offers a quick and easy changeover that maximizes production flexibility. The tightening discs are gentle which will not damage caps but with an excellent capping performance.
Technical Parameter
Voltage |
AC220V 50HZ |
Power |
0.6KW |
Capacity |
50-80 bottles/minute |
Diameter of Bottle Cap |
20-50mm |
Applicable Bottle Cap |
Round plastic bottle cap |
Diameter of Bottle |
150mm (maximum diameter) |
Bottle Height |
130-300mm |
Operation |
Adjustable capping force. Three times of capping (100% perfectness ratio) |
Material of Machine |
Stainless steel frame |
Variable-speed Motor |
Taiwan |

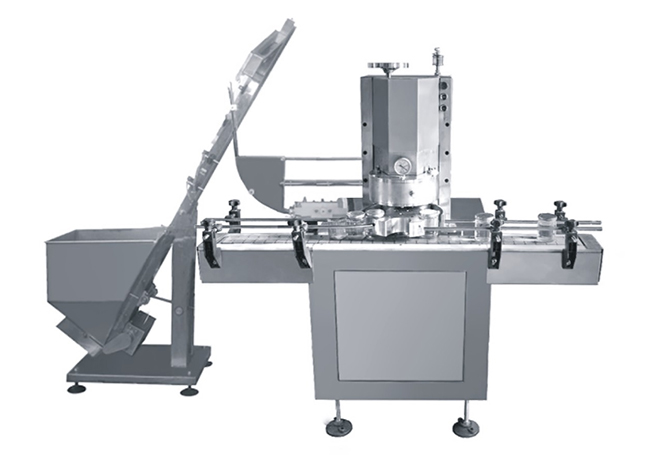

XF- XG Automatic Vacuum Capping Machine with Cap Feeder
Application
This automatic vacuum capping machine is widely used in food, beverages, sauces, spices, medicine, health care products and other industries. It is used for automatic vacuum capping of glass bottles with iron cover.
Features
1. This automatic vacuum capping machine has advantages of fast production speed, high efficiency, and stable and reliable operation.
2. Easy replacement of different sizes of bottles and lids.
3. The automatic vacuum capping machine uses mechanical system with vacuum pump (prepared by customer) to ensure the vacuum degree.
Specifications
Model |
XF- XG |
Cap Diameter |
Ø30-Ø90mm |
Bottle Diameter |
Ø30-Ø90mm Ø80-Ø150mm |
Bottle Height |
50-180mm |
Capping Speed |
35-45pcs/min |
Vacuum Degree |
-55kpa |
Screw Cap Torque |
5-20nm |
Qualified Percent |
99% |
Power |
750W |
Voltage |
AC220V 50HZ |
Dimensions |
2380 × 750 × 1480mm |
Weight |
650kg |

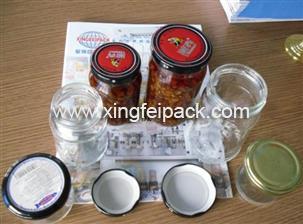

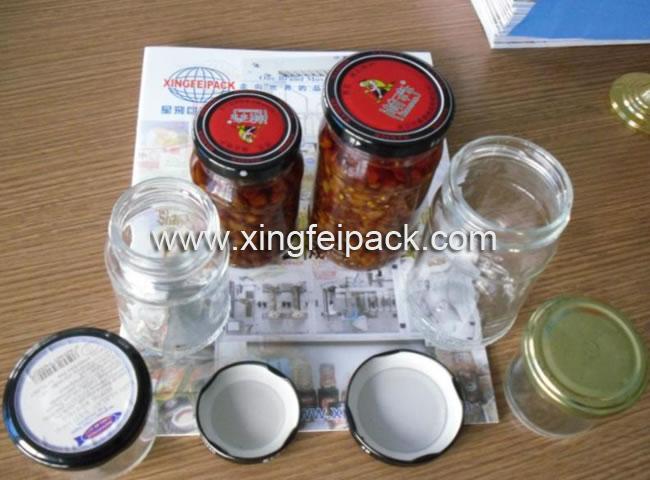

Samples of Automatic Vacuum Capping Machine
