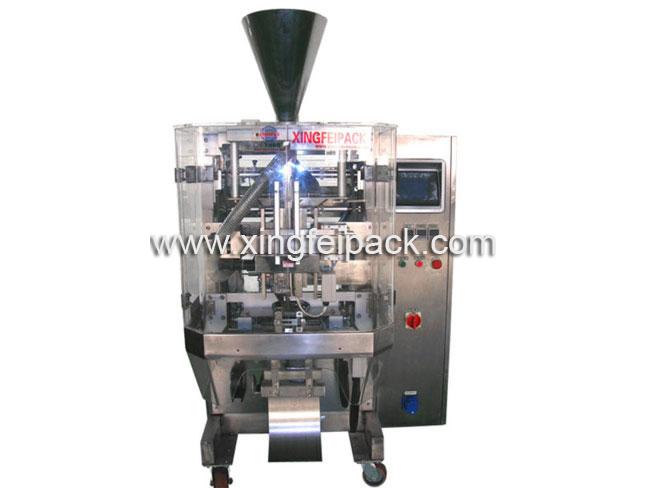

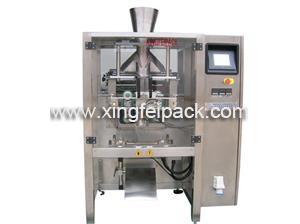

Model: XFL-200
Description
Automatic vertical packaging machine uses intelligent temperature controller to adjust temperature, which ensures the artistic and neat seal. This vertical form fill seal machine completes the whole packing procedure automatically, including load materials, measuring, bag making, sealing, date printing, air charging (or exhausting), transporting as well as counting.
Application
Automatic vertical packaging machine is suitable to pack fragile materials such as puffed food, crispy rice, jelly, candy, pistachio, apple slices, dumpling, chocolate, pet food, small hardware, medicine, etc. It is suitable for powdery, granular and liquid products.
Characters of Vertical Form Fill Seal Machine
1. Drive control center composes the PLC servo system, pneumatic control system and super touch screen, which maximize control precision, reliability and intelligent zed level.
2. Touch screen can store the technical parameters of kinds of products. It is unnecessary to reset while products changing.
3. Error indicating system will handle the trouble immediately.
4. Pillow bags and hanging bags are made in terms of customers’ different requirements.
Technical Parameter of Automatic Vertical Packaging Machine
|
Model
|
XFL-200
|
XFL-250
|
|
Bag-making Size
|
(L)80 to 300mm, (W)80 to 200mm
|
(L)100 to 330mm, (W)100 to 250mm
|
|
Packing Speed
|
25 to 75 Bags/Min
|
25 to 65 Bags/Min
|
|
Power Supply
|
220V, 50 to 60Hz, 3.0 kW
|
380 to 220V, 50 to 60Hz, 3.6kW
|
|
Compressed air consumption
|
6 to 8 kg/ m2, 0.15 m3/min
|
6 to 8 kg/m2, 0.15 m3/min
|
|
Weight
|
500 kg
|
700 kg
|
|
Dimension
|
1450 × 1000 × 1700 (mm)
|
1200 × 1450 × 1800 (mm)
|
Sample of Automatic Vertical Packaging Machine
