Model: XFG-F
Description

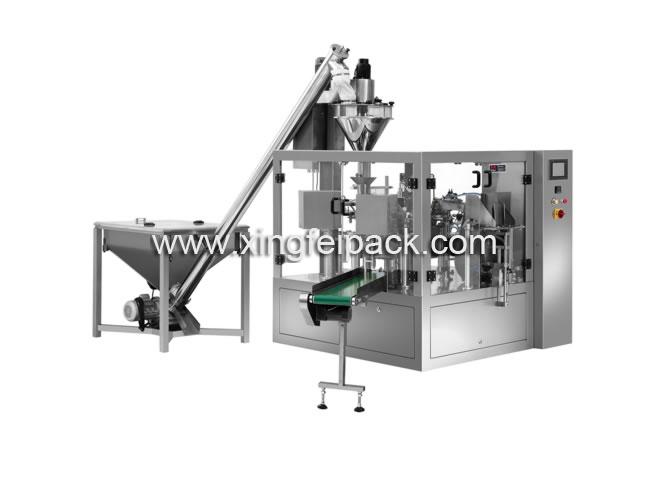

XFG-F automatic pre-made bag powder packing machine is used for the flat bag, standup bag, bag with zipper. With the powder auger feeder device, the equipment can finish the process of feeding, weighing and packing automatically.
Application
Powder auger filling equipment is widely used for different powdery product, such as flour, flavoring, monosodium glutamate, milk powder, dextrose, chemical powder, refined sugar, pesticide, fertilizer, etc.
Technical Parameter
|
Model
|
XFG-F Automatic Pre-made Bag Powder Packing Machine
|
|
Capacity
|
15 to 30bag/min
|
|
Bag size
|
Width: 150 to 250mm, Length: 250 to 350m
|
|
Filling weight
|
2000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply
|
AC380V±10%, 3-phase 50Hz
|
|
Power consumption
|
2 kW
|
|
Air Consumption
|
0.4m³/min at 5 to 8 kgf/cm² Air compressor as source of pneumatic power supply is by customer
|
|
Machine weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1140 × 1500 × 1560 mm
|
Parameters of Powder Auger Filling Equipment
|
Filling range
|
100 to 2000g
|
|
Weight precision
|
± 1%
|
Packing Samples of Automatic Pre-made Bag Powder Packing Machine
