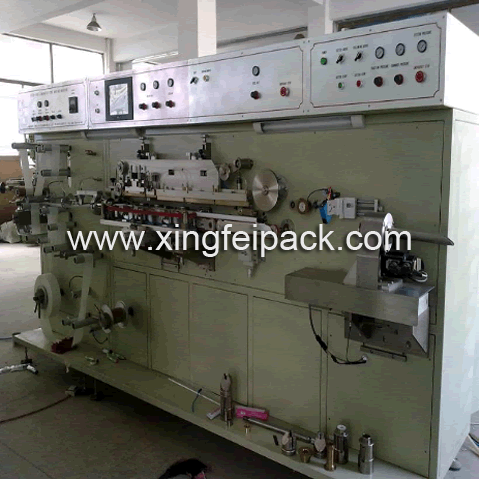

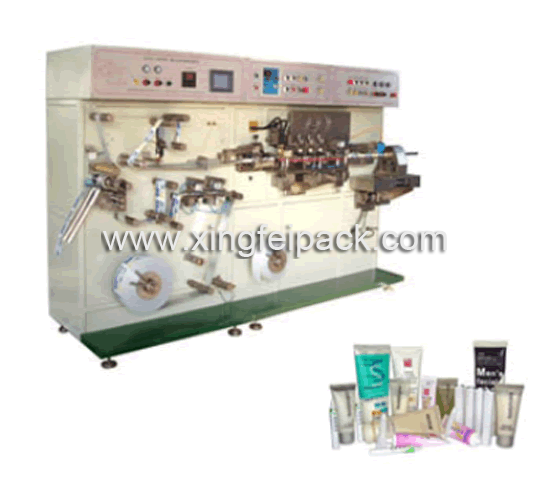

Automatic plastic laminated tube making machine can not only make aluminum-plastic tube (ABL), but also plastic tube (PBL). Automatic tube making equipment can be combined with our semi-automatic shoulder injection machine to become a tube production line.
Application
This automatic plastic laminated tube making machine is controlled by PLC with the human-computer interface of touch screen, which features stable performance, simple manipulation and easy adjustment. It will be widely used in the production of packaging tubes of toothpaste, food, drug, cosmetic and other types of pastes or latexes products.
Parameters of Automatic Plastic Laminated Tube Making Machine
Item
Parameters
Power Supply
220(380)VAC/50Hz
Power
10 kW
High-frequency power
6.5 kW
Motor powder
3.5 kW
Air Supply
0.5 to 0.7MPa, trough oil water treatment
Tube-Making Speed
18m/min, 100pcs/min(max)
Tube Diameter
Φ12.7 to 50 mm
Tube Length
45 to 200 mm
Machine size
3300 × 1980 × 1100 mm
Water Supply Requirement
>0.2MPa, Flux 5 to 6liter/min , Temperature <20℃, soft water
Weight
1800 kg

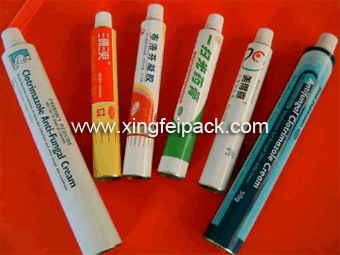

Samples of Automatic Tube Making Equipment

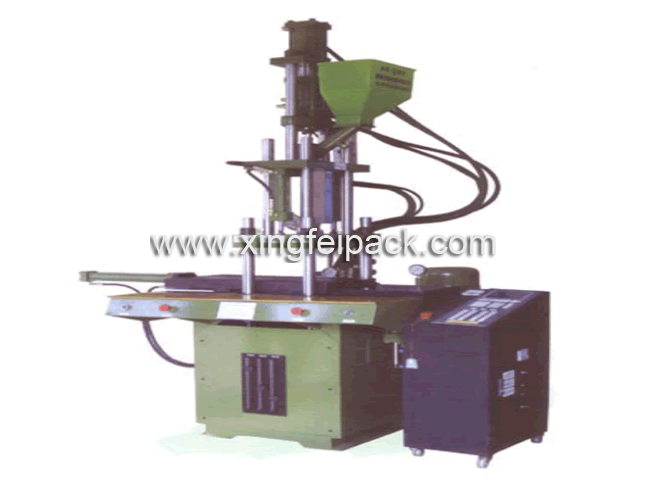

Semi-automatic Shoulder Injection Machine
Description
The semi-automatic shoulder injection machine is working with the automatic aluminum plastic laminated tube making machine to complete the aluminum plastic tube production line. The working process is: Put the pipe in the mould → Injection → output
Parameters of Semi-automatic Shoulder Injection Machine
Power Supply
3 × 380VAC/50Hz
Power of the main machine
9 kW
Speed
25 to 30pcs/min
Tube size
12.7 to 30 mm or 12.7 to 60 mm
Dimension
2600 × 1700 × 2800 mm
Weight
1500 kg
Semi-automatic Shoulder Injection Machine

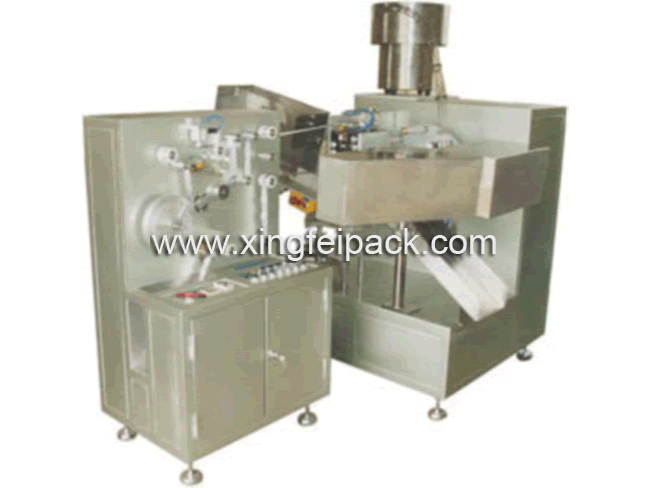

Aluminum Foil Sealing and Capping Machine
Description
The aluminum foil sealing and capping machine complete all the works of tube feeing, sealing, cap feeding, capping and product output. PLC control system makes the machine more accurate and stable. Translocation using precision cam indexing mechanism, the positioning is precise and smooth. Translocation motor adopts frequency control, so the user can adjust the speed.
Application
The aluminum foil sealing and capping machine is widely used in toothpaste, cosmetics, pharmaceuticals and food industries, which is suitable for foil seal and cap of all kinds of tubes.
Parameters of Aluminum Foil Sealing and Capping Machine
Item
Parameters
Power Supply
220(380)VAC/50Hz
Power
2.5 kW
Air Exhaustion
0.35 m3/min,0.6MPa
Tube Diameter
Φ16 to 50 mm
Tube Length
70 to 180 mm
Production Capacity
30 to 40Pcs/min
Machine size
1700 × 2100 × 1800 mm
Weight
1200 kg

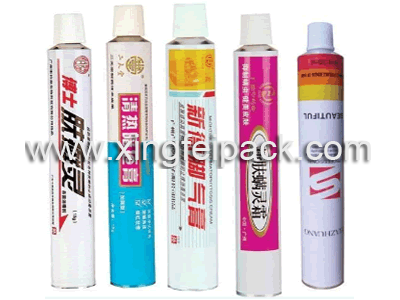

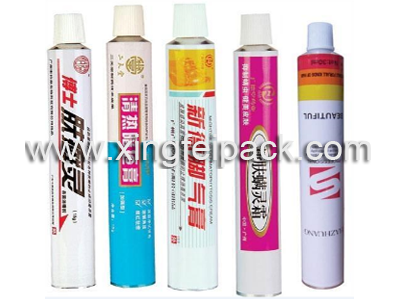

Samples of Automatic Plastic Laminated Tube Making Machine
