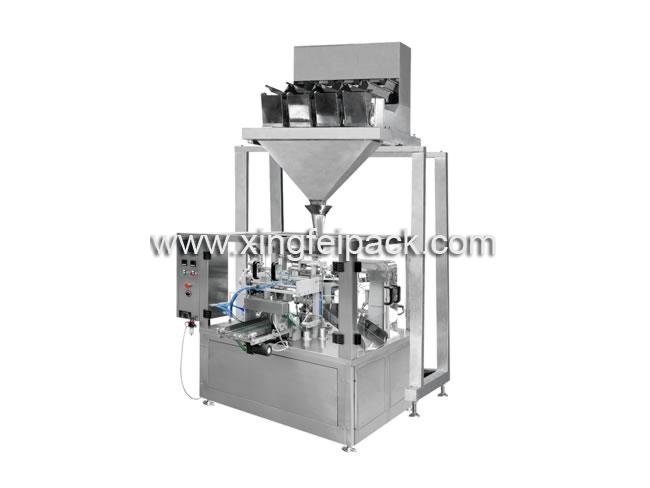

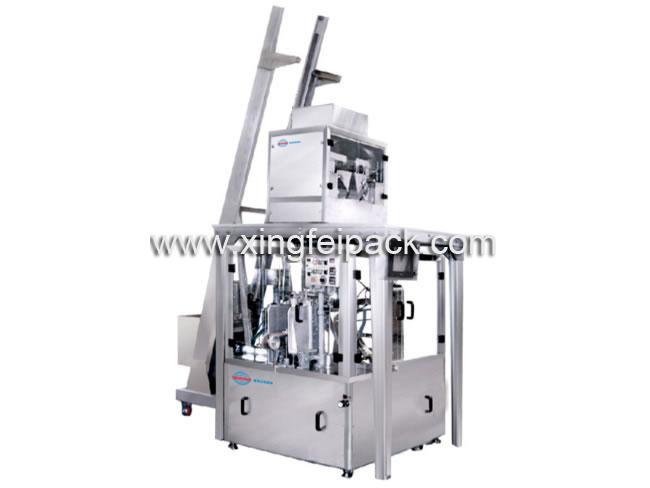

Automatic Rotary Pouch Filling Machine & Four Head/Six Head Weighing Machine

Model: XFG

Description

XFG automatic rotary pouch filling machine is working with electronic weighing machine with four head/six head as a unit. They are specified for the granulated products filling and sealing, such as chicken flavor, MSG, granulated sugar, tea leaves, etc.

Features

1. This machine neither fills in the damaged bag nor defective bags
2. The automatic rotary pouch filling machine doesn’t seal the empty bags for the case of material saving.
3. The superior cleaning device, dust removing device and intensified sealing technique ensures the dustless working environment.
4. This unit can fill and seal various flat bags automatically. Simple operation of changing different bag’s sizes, which only need 2 to 5 minutes.
5. This unit can also do the flat pouch, standing pouches, zipper bags and special style bags with the automatic pre-made bag filling and sealing machine.

Parameters of Automatic Rotary Pouch Filling Machine

Capacity	30 to 50 bag/min, according to product type and characteristics
Bag Size	(L): 100 to 300mm (W): 100 to 200 mm
Filling weight	Up to1000 g/bag (max)
Bag sealing	Sealing by heat and pressure
Power supply	AC380V ±10%, 3-phase, 50Hz
Power Consumption	2.0 kW
Air Consumption	0.2 m3/min at 5 to 8 kgf/cm2 Air compressor is supplied by customer
Machine Weight	1200 kg
Dimension (W×L×H)	1140 × 1500 × 1560 mm

Parameters of Electronic Weighing Machine with Four Head/Six Head

Wight limits	20 to 200g, 50 to 500g, 100 to 1000g
Deviation	±1 to 3g
Weigh and Packaging Capacity	1500 to 2700bags/hour
Application	Granules: Chemicals, seasonings, natural flavoring, fertilizer, feed, granulated sugar, salt and etc.

Packing Samples of Automatic Rotary Pouch Filling Machine
