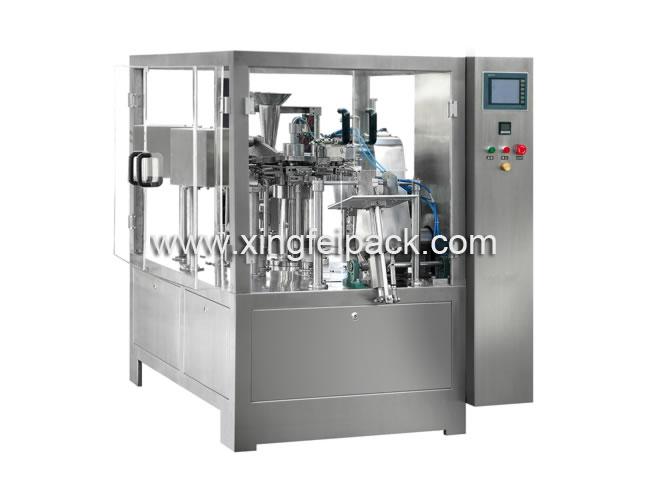

Automatic Premade Doy Pouch Filling And Sealing Machine

Model: XFG-300

Description

XFG-300 automatic stand up pouch packing machine is used for the flat bag, standup bag, bag with zipper, and the machine can fill and seal different granule, powder and the liquid products by matching with different measuring system.

Features

While the bag size is different, it is easy to operate the pre-made pouch filling machine by using the handle to adjust the width of the bag-nipping claw.

Application

Automatic stand up pouch packing machine is widely used for powdery, granular, solid and liquid products.
1. Powder type: wheat flour, milk powder, powder of lotus root, powder of flavoring, spices, juice powder, soup powder, medicine, and additive, chemical powder, etc.
2. Granules: chicken essence, monosodium glutamate, salt, sugar, seed, fertilizer, fish seed, pesticide, etc.
3. Solid: fruit chips, confectionary, snack, nuts, rice cracker, biscuit, cake, candy, peanuts, wing of the chicken, ball and frozen dumpling, etc.
4. Liquid: sauce, oil, jam, salad jam, juice, beverage, shampoo, liquid detergent, etc.

Parameter of Automatic Stand Up Pouch Packing Machine

Capacity	30 to 40 bag/min, (according to product type and characteristics)
Bag Size	(L): 150 to 350mm (W): 150 to 220 mm
Filling weight	Up to1000 g/bag (max)
Bag sealing	Sealing by heat and pressure
Power supply	AC380V±10%, 3-phase 50Hz
Power Consumption	2.0kW
Air consumption of pre-made pouch filling machine	0.2 m3/min at 5 to 8 kgf/cm2 Air compressor is supplied by customer
Machine Weight	1200 kg
Dimension (W×L×H)	1340 × 1895 × 1435mm

Packing Samples of Automatic Stand Up Pouch Packing Machine
