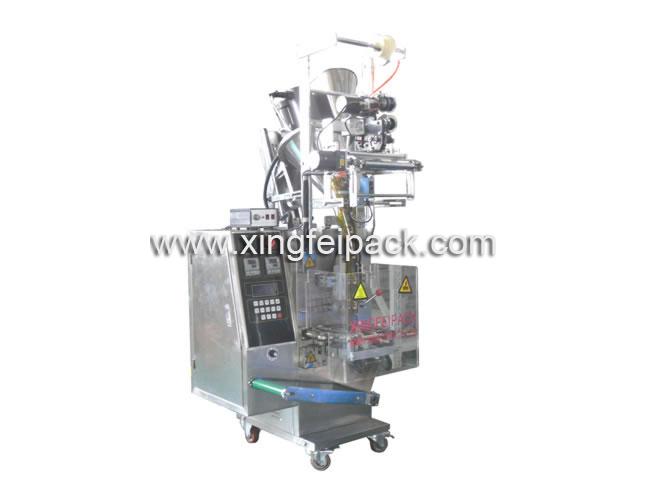

Powder Sachet Packing Machine

Model: XFL-F

Description

Our powder sachet packing machine is well applied in the food, chemical, pharmaceutical, and light industries, including granule packing machine, powder packing machine, liquid packing machine to pack such stuff as granule, powder, liquid, and paste into small packages.

Application

Vertical sachet filling machine is widely applied for food, pharmacy and chemical products in mesh size range from 120 to 240, such as milk powder, Soya powder, cosmetic powder, slimming tea, medical powder, etc. Applicable material should be heat sealable films like: PET/PE, Paper/PE, PET/AL (PET-AL) PE, OPP/PE.

Features

1. Our powder sachet packing machine adopts driving system, which is simple, reliable and easy maintenance.
2. Independent PID controls the temperature, which is more suitable for different packing materials.
3. Addable code printer can print date of manufacture, expiration date and validity date.
4. The vertical sachet filling machine can finish the work of bag-making, measuring, filling, sealing, cutting and counting automatically.
5. Either length control setting or photoelectric color tracing, bag length is set and cut in one step, which save time and film.

Technical Parameter of Powder Sachet Packing Machine

Type	XFL-FI	XFL-FII
Bag shape	Three-side, Four-side sea, or Back seal	Three-side, Four-side sea, or Back seal
Dosing method	Auger doing	Auger doing
Weighing range	0 to 100 ml	0 to 150 ml
Packing speed	40 to 60 (bag/min)	20 to 60 (bag/min)
Bag size of vertical sachet filling machine	(W): 30 to 120 mm (L): 30 to 155mm	(W): 30 to 120 mm (L): 30 to 155mm
Power	1400 W	1600 W
Power supply	(380V or 220V or customized )	(380V or 220V or customized)
Weight	180 kg	250 kg
Dimension (L×W×H)	625 × 750 × 1560 mm	1010 × 730 × 1780 mm

Packing Samples of Powder Sachet Packing Machine
