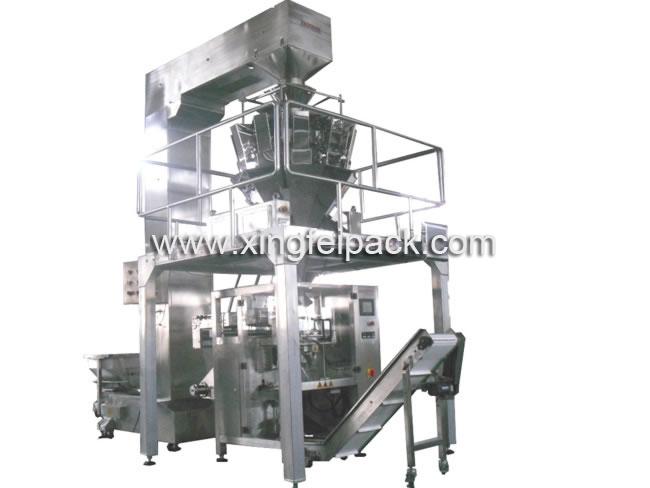

Automatic Weighing Packaging Machine

Model: XFL

Description

Automatic weighing packaging machine composes of vibrating feeder and Z type lifter, 10/14 head weigher, main packaging machine, platform and finished product conveyor. The machine will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying.

Usage

Automatic weighing packaging machine is suit to pack anomalous solid and the granule material, such as: puff snack food, potato chips, crispy rice, jelly, candy, apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.

Characters

1. The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying.
2. Automatic weighing packaging machine has advantages of high accurate weighting, high efficiency without broken material.

Technical Parameter of Automatic Weighing Packaging Machine

Model	XFL-200	XFL-250	XFL-300	XFL-350
Bag-making Size	(L)80 to 300mm, (W)80 to 200mm	(L)100 to 330mm, (W)100 to 250mm	(L)100 to 400mm, (W)100 to 300mm	(L)100 to 450mm, (W)100 to 350mm
Packing Speed	25 to 75 Bags/Min	25 to 65 Bags/Min	25 to 65 Bags/Min	25 to 60 Bags/Min
Power Supply	220V, 50 to 60Hz, 3.0 kW	380 to 220V, 50 to 60Hz, 3.6kW	220V, 50 to 60Hz, 4.0 kW	380 to 220V, 50 to 60Hz, 4.75 kW
Compressed air consumption	6 to 8 kg/m2 0.15 m3/min	6 to 8 kg/m2, 0.15 m3/min	6 to 8 kg/m2, 0.15 m3/min	6 to 8 kg/m2, 0.15 m3/min
Weight	500 kg	700 kg	800 kg	850 kg
Dimension(mm)	1450 × 1000 × 1700	1200 × 1450 × 1800	1200 × 1500 × 1950	1250 × 1500 × 2000

Sample of Automatic Weighing Packaging Machine
