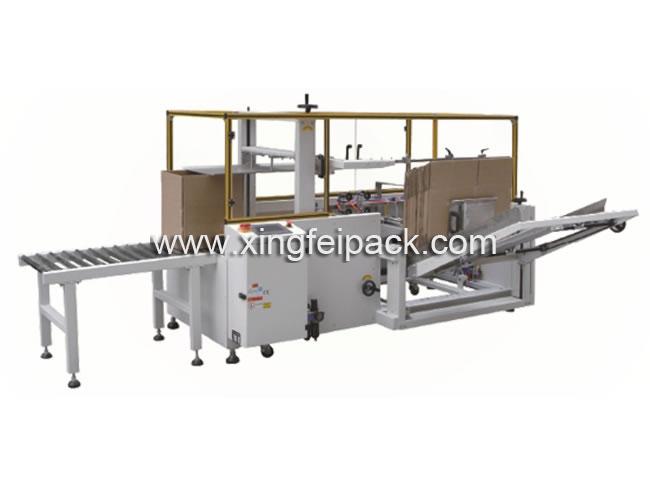

This XFC-KX automatic carton erector can open the flat carton and seal the bottom automatically. It could be used individually or combined with the carton packaging machine. Automatic carton packing equipment is widely used in food, chemistry and daily products industries etc.
Features
1. XFC-KX automatic carton erector stops and alarm when error occurs or lack of carton.
2. Different size of carton is applicable with machine range.
3. Smooth and fine performance of taping.
4. Automatic carton packing equipment is controlled by PLC with human-machine interface display, which is easy to operate.
Parameters of XFC-KX Automatic Carton Erector
Carton Size
L: 150 to 400 W: 200 to 450 H: 100 to 350 (mm)
Speed
8 to 12 carton/min
Table
600 to 720 mm
Dimension
2000 × 1900 × 1450 mm
Power supply
220/380 50/60Hz
Air source
5 to 6kg/cm3
Tape
48/60/72mm
Weight
400 kg
