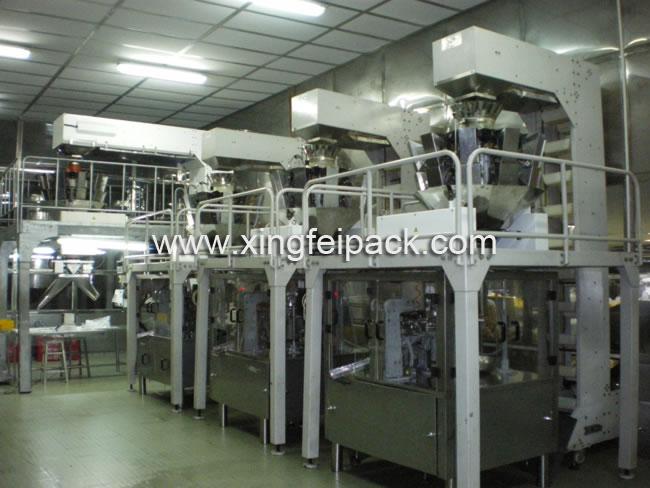

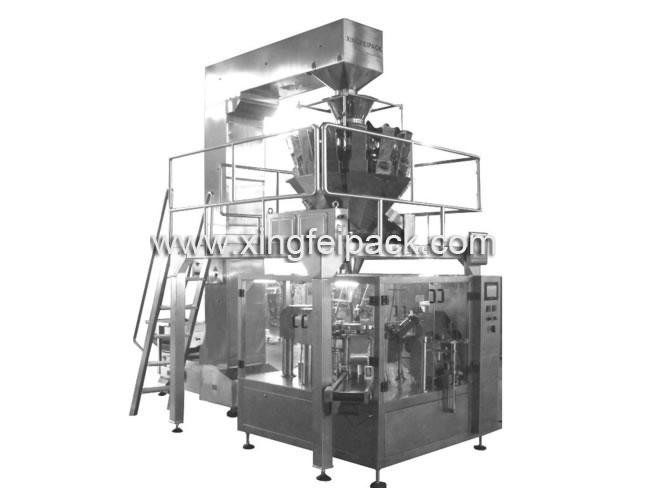

XFG-K automatic pre-made bag granule packing machine consists of Z type lifter with Vibrating feeder, 10 head weigher, automatic pre-made bag filling and sealing machine and platform.
Feature
1. The system will finish all the process automatically: feeding, dosing, filling, sealing, date coding.
2. Granule packing equipment has the advantages of high accurate weighting, high efficiency without broken material.
Application
The automatic pre-made bag granule packing machine is suit to packing anomalous solid and the granule material, such as puff snack food, potato chips, crispy rice, jelly, candy, pistachio nuts, fruit chips like apple chips, dumpling, small cookie, dry fruit, melon seeds, roasted seeds and nuts, medical material, deep-frozen food, etc.
Technical Parameter
Model
XFG-K Automatic Pre-made Bag Granule Packing Machine
Capacity
30 to 50 bag/min, according to product type and characteristics
Bag Size
(L): 100 to 300mm (W): 100 to 200 mm
Filling weight
Up to1000 g/bag (max)
Bag sealing
Sealing by heat and pressure
Power supply
AC380V±10%, 3-phase, 50Hz
Power Consumption
2.0 kW
Air Consumption of granule packing equipment
0.2 m3/min at 5 to 8 kgf/cm2 Air compressor is supplied by customer
Machine Weight
1200 kg
Dimension (W×L×H)
1140 × 1500 × 1560 mm
Packing Samples of Automatic Pre-made Bag Granule Packing Machine
