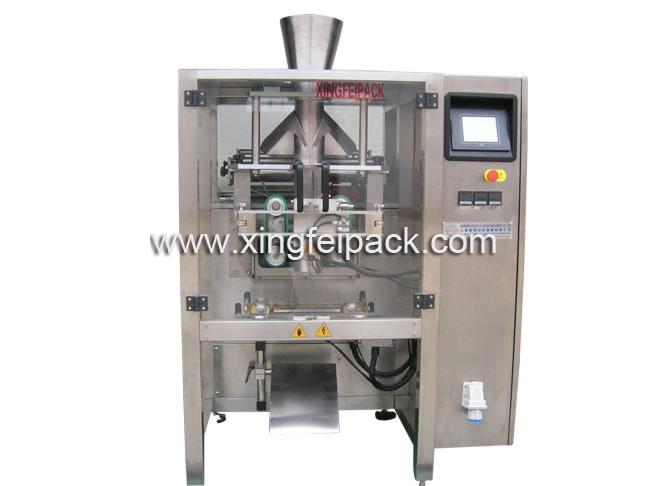

Model: XFL-250
Description
This XFL-250 automatic vertical form fill seal machine completes the whole packing procedure of loading materials, measuring, bag making, sealing, date printing, air charging (or exhausting) and products transporting as well as counting.
Application
This automatic vertical form fill seal machine is applied for powdery and granular products: milk powder, protein powder, coffee powder, baking powder, granule sugar, glucose, MSG, juice powder, granular and powder additive, granule medicine, talcum powder, dyes, spices, veterinary drugs, pesticides, detergent powder, and liquid and pasty products: tomato paste, fruit jam, shampoo, liquid fertilizer, pesticides, etc.
Characters of Vertical Packing Equipment
1. Intelligent temperature controller is used to control accurate temperature, which ensures the artistic and neat seal.
2. The drive control center composes PLC servo system, pneumatic control system and super touch screen, which maximize the control precision, reliability and intelligent zed level.
3. Automatic vertical form fill seal machine is equipped with safety protection, and comply with firm’s safety management requirements.
4. Touch screen can store the technical parameters of various kinds of products. It is unnecessary to reset while products changing.
5. Error indicating system can help to handle the trouble immediately. Pillow bags and hanging bags are made in terms of customers’ different requirements.
Technical Parameters of Automatic Vertical Form Fill Seal Machine
|
Model
|
XFL-200
|
XFL-250
|
|
Bag-making Size
|
(L)80 to 300mm, (W)80 to 200mm
|
(L)100 to 330mm, (W)100 to 250mm
|
|
Packing Speed
|
25 to 75 Bags/Min
|
25 to 65 Bags/Min
|
|
Power Supply
|
220V, 50 to 60Hz, 3.0 kW
|
380 to 220V, 50 to 60Hz, 3.6 kW
|
|
Compressed air consumption of vertical packing equipment
|
6 to 8 kg/m2, 0.15 m3/min
|
6 to 8 kg/m2, 0.15 m3/min
|
|
Weight
|
500 kg
|
700 kg
|
|
Dimension
|
1450 × 1000 × 1700 (mm)
|
1200 × 1450 × 1800 (mm)
|
Sample of Automatic Vertical Form Fill Seal Machine
