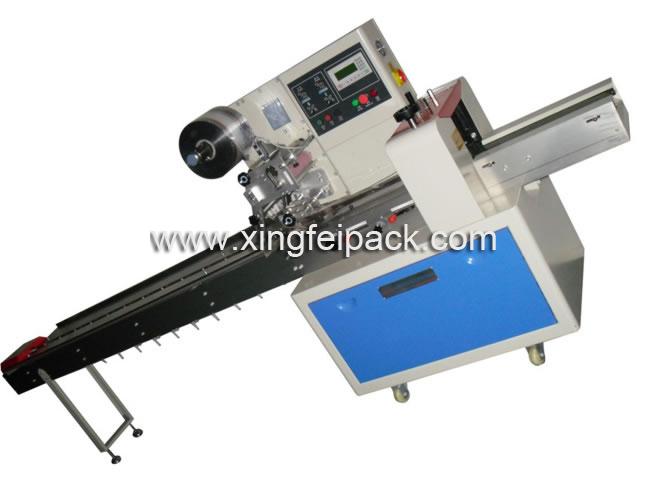

Cake Packing Machine

Description
XF-Z cake packing machine adopts high sensitivity optical electric color mark tracking and digital input cut position, which make the sealing and cutting more accurate. Human-machine operation is convenient to setting parameter quickly.

Application

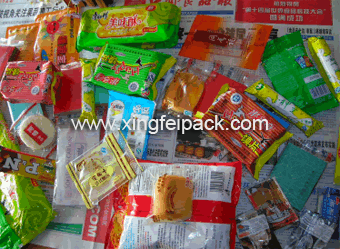

Cake packing machine is suitable for packing regular objects, such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box or trays.

Features
1. Horizontal flow wrapping machine is equipped with self diagnosis failure function, which ensures failure display clearly.
2. Separate PID control to temperature is suitable for various packing materials.
3. Stopping the machine in selected position, which features no sticking to the knife and no waste packing film.
4. Simple driving system is reliable working and convenient maintenance.
5. All the controls are achieved by software, convenient for function adjusting and upgrading.

Types for Choice of Cake Packing in Lantoky:
XF-Z 250, XF-Z 320, XF-Z 350, XF-Z 450

Model	250	320	350	450
Packaging speed	40 to 230pcs/min	40 to 230pcs/min	30 to 200pcs/min	30 to 150Pcs/min
Bag length(mm)	45 to 280	65 to 330	65 to 330	130 to 450
Bag (mm)	30 to 110	50 to 160	50 to 160	50 to 180
Film	Max 250mm	Max 320mm	Max 350mm	Max 450mm
Power	220V, 50-60Hz, 2.6KVA	220V, 50 to 60Hz, 2.6KVA	220V, 50 to 60Hz, 2.6KVA	220V, 50 to 60Hz, 2.6KVA
Dimension(mm)	3770 × 670 × 1450	402 × 745 × 1450	4020 × 745 × 1450	4020 × 800 × 1450
Weight	800Kg	800kg	800kg	950Kg
Packing Material	PT/PE,BEOPP/PE,AL/PE and other hearable sealed laminated films etc.
