Description
The packaging weight of protein powder filling and packing machine can be stepless regulated and the working mode can be changed anytime. It is easy to operate. Servo motor driving screw features high-precision orientation, high-speed, great-torque, long-life, setup rotate speed and stable performance.
Working Process of Protein Powder Packing Machine

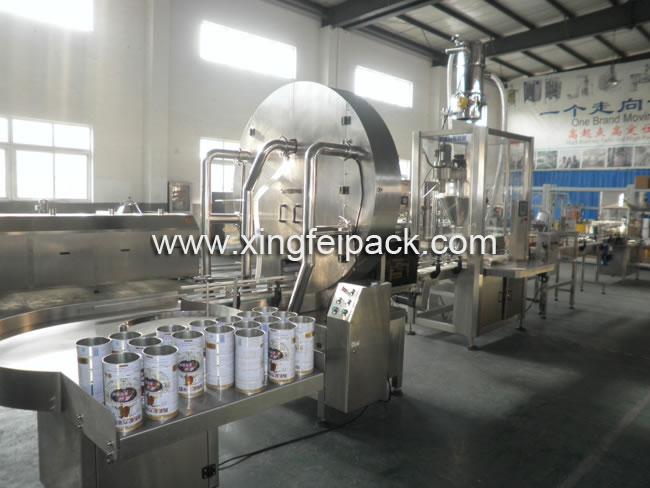

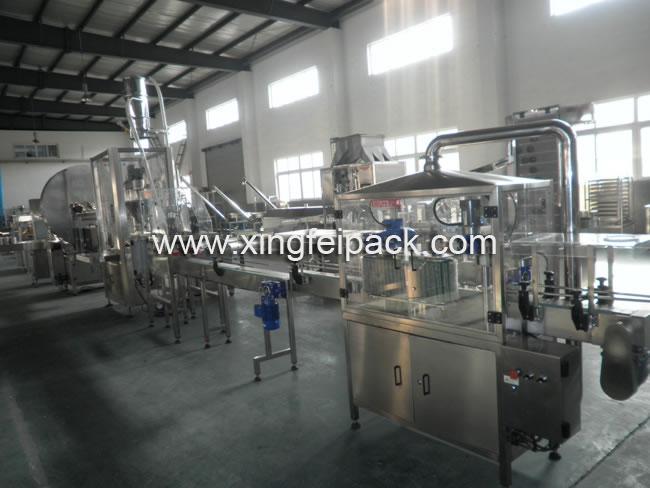

Can feeding table → can overturn and blower → tunnel sterilizing machine → conveyor (XF-S auger conveyor) → automatic powder dosing and filling → can seamer unit (pre can sealing → vacuum nitrogen filling machine → can seamer) → conveyor → cover capping machine → platform
Specification of Protein Powder Filling and Packing Machine
|
Metering Mode
|
Dual auger filling & weighing
|
|

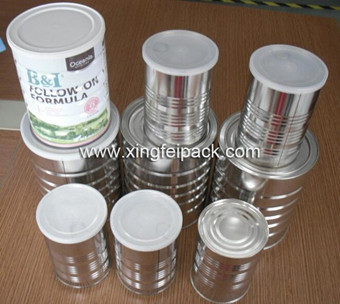

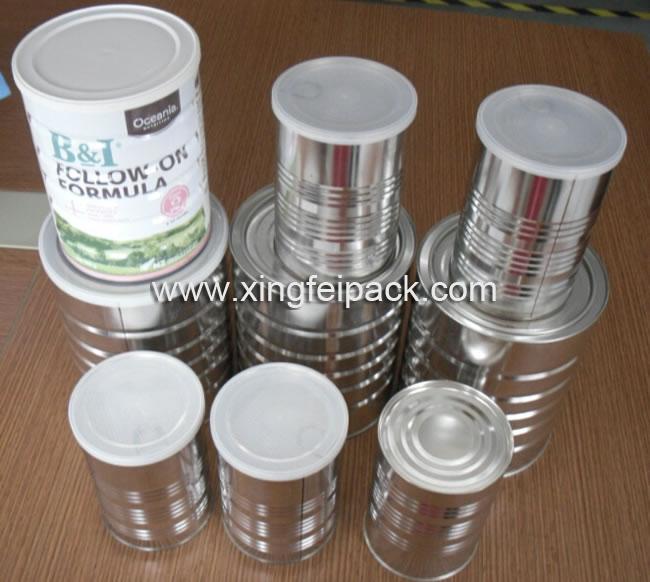

Size of the container
|
Cylindrical container: φ50 to 180mm, High 50 to 350mm
|
|
Packing weight
|
10 to 5000G (The screw attachment is to be changed)
|
|
Weighing range
|
1 to 6000G (Resolution is 01g)
|
|
Filling Accuracy of protein powder packing machine
|
≤ 500g,with an error≤±1.5g
|
|
500 to 1000g,with an error≤±2.5%g
|
|
>1000g, with an error ≤ ±4g
|
|
Filling Rate
|
25 to 55cans/min
|
|
Power supply of protein powder filling and packing machine
|
3P/380V (1P/220V according your requirement) 50 to 60Hz
|
|
Total power
|
3 kW
|
|
Use tolerance
|
0.2 m3/min
|
|
Total weight
|
700 kg
|
|
Overall Dimensions
|
3330 × 1200 × 2930 mm
|
|
Hopper volume
|
50L(main), 35L(asset)
|
