Description
Lantoky Packaging Machinery benefits from the experience of foreign success story, and combines the selfish condition to develop all kinds of high-end vertical automatic packing machine, horizontal automatic packing machine and Pre-made pouch liquid packing machine
Application

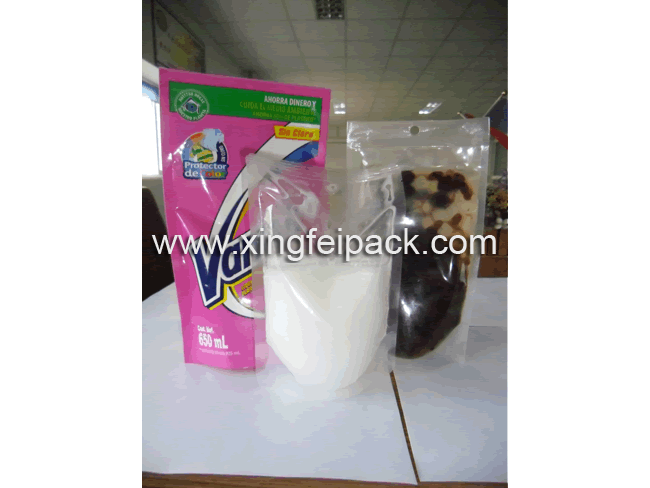

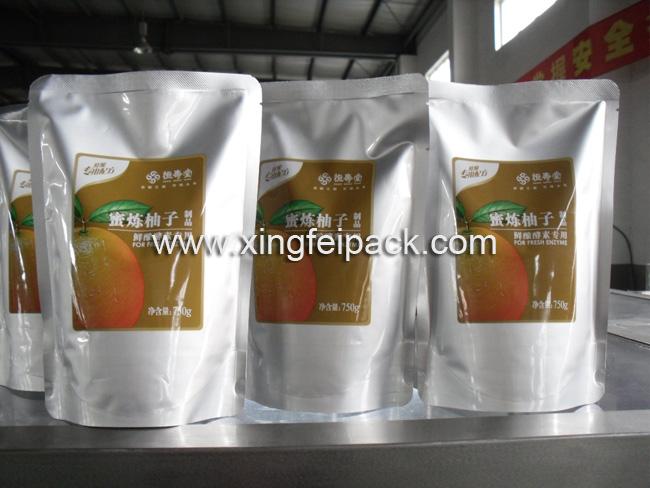

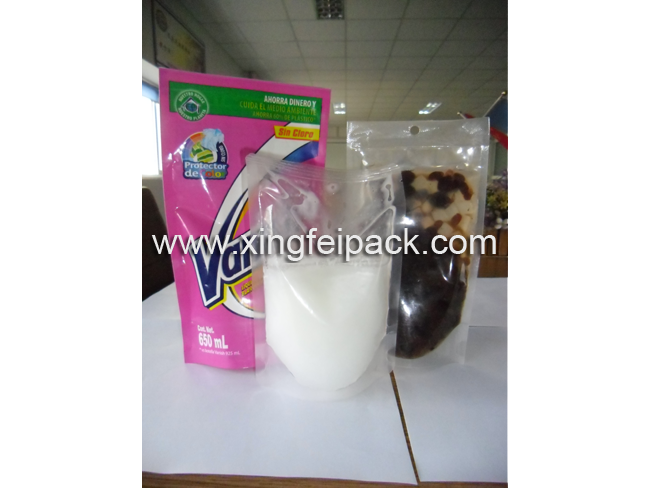

Juice filling equipment is used for the flat bag, standup bag, and bag with zipper. While the bag size is different, it is easy to operate the machine by using the handle to adjust the width of the bag-nipping claw.

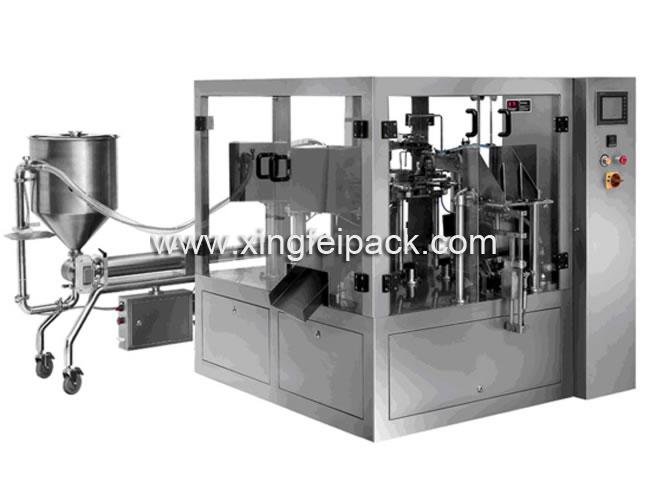

Technical Parameters of Juice Filling Equipment
|
Capacity
|
30 to 50 bag/min according to product type and characteristics
|
|
Bag Size
|
(L): 100 to 300mm (W): 100 to 200 mm
|
|
Filling weight
|
Up to1000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply
|
AC380V±10%, 3-phase 50Hz
|
|
Power Consumption
|
2.0 kW
|
|
Air consumption of juice filling equipment
|
0.2 m3/min at 5 to 8 kgf/ cm2 Air compressor is supplied by customer
|
|
Weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1140 × 1500 × 1560 mm
|
