Description

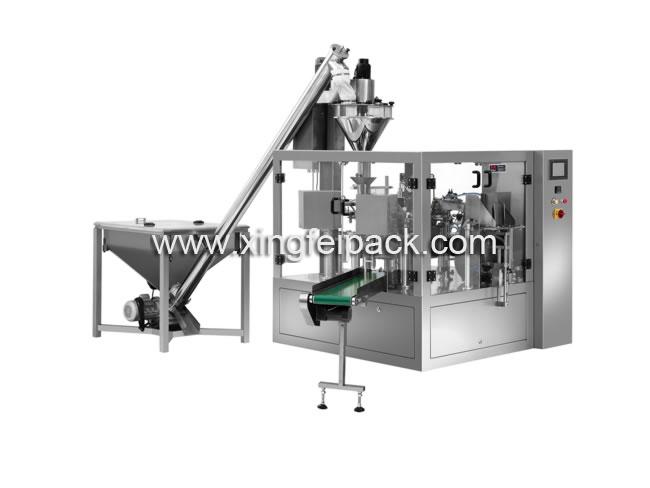

When the pepper powder packing machine is combined with metering equipments, full packaging process including automatic feeding, metering, bag filling, date printing and automatic counting is completed.
Application
Automatic powder packing machine is widely used for different powdery product, such as flour, flavoring, monosodium glutamate, milk powder, dextrose, chemical powder, refined sugar, pesticide, fertilizer, etc.
Technical Parameter of Pepper Powder Packing Machine
|
Capacity
|
15 to 30bag/min
|
|
Bag size
|
wide: 150 to 250mm, Length: 250 to 350m
|
|
Filling weight
|
2000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply
|
AC380V±10%, 3-phase 50Hz
|
|
Power consumption
|
2 kW
|
|
Air consumption of pepper powder packing machine
|
0.4m³/min at 5 to 8 kgf/cm² Air compressor as source of pneumatic power supply is by customer
|
|
Machine weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1140 × 1500 × 1560 mm
|
