Description

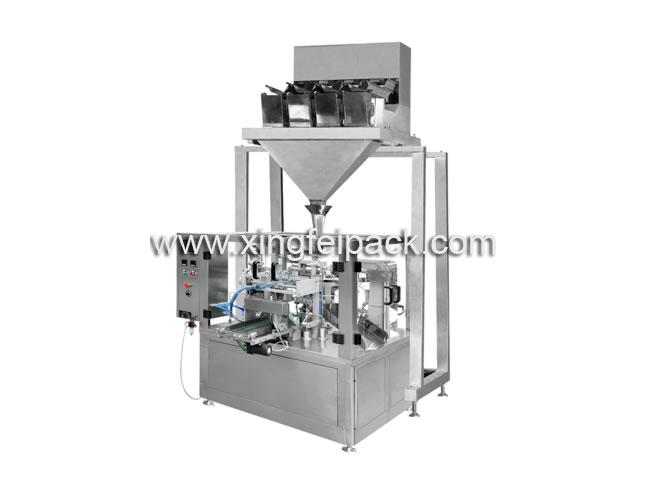

This monosodium glutamate packaging machine neither fills in the damaged bag nor defective bags. Automatic pouch filling machine is specified for the granulated products filling and sealing, such as chicken flavor, MSG, granulated sugar, tea leaves, etc.
Features
1. This unit can fill and seal various flat bags automatically. Simple operation of changing different bag’s sizes, which only need 2 to 5 minutes.
2. This unit can also do the flat pouch, standing pouches, zipper bags and special style bags with the automatic pre-made bag filling and sealing machine.
Parameters of Monosodium Glutamate Packaging Machine
|
Capacity
|
30 to 50 bag/min, according to product type and characteristics
|
|
Bag Size
|
(L): 100 to 300mm (W): 100 to 200 mm
|
|
Filling weight
|
Up to1000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply
|
AC380V ±10%, 3-phase, 50Hz
|
|
Power Consumption
|
2.0 kW
|
|
Air Consumption of Automatic Pouch Filling Machine
|
0.2 m3/min at 5 to 8 kgf/ cm2 Air compressor is supplied by customer
|
|
Machine Weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1140 × 1500 × 1560 mm
|
Packing Samples of Monosodium Glutamate Packaging Machine
