Description

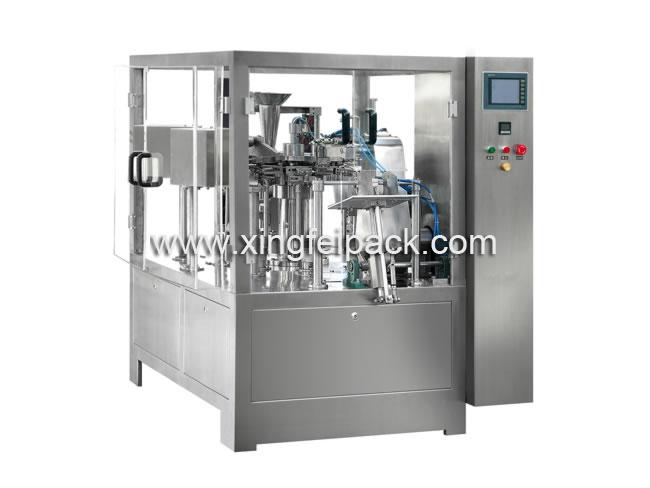

Zipper bag filling machine is used for the flat bag, standup bag, bag with zipper, and the machine can fill and seal different granule, powder and the liquid products by matching with different measuring system.
Types for Choice of Zipper Bag Filling in Lantoky:
XFG-200,
XFG-300,
XFG-K
Technical Parameters of Zipper Bag Filling Machine
|
Capacity
|
30 to 40 bag/min, (according to product type and characteristics)
|
|
Bag Size
|
(L): 150 to 350mm (W): 150 to 220 mm
|
|
Filling weight
|
Up to1000 g/bag (max)
|
|
Bag sealing
|
Sealing by heat and pressure
|
|
Power supply of zipper lock packaging machine
|
AC380V±10%, 3-phase 50Hz
|
|
Power Consumption
|
2.0 kW
|
|
Air consumption of zipper bag filling machine
|
0.2 m3/min at 5 to 8 kgf/ cm2 Air compressor is supplied by customer
|
|
Machine Weight
|
1200 kg
|
|
Dimension (W×L×H)
|
1340 × 1895 × 1435mm
|
