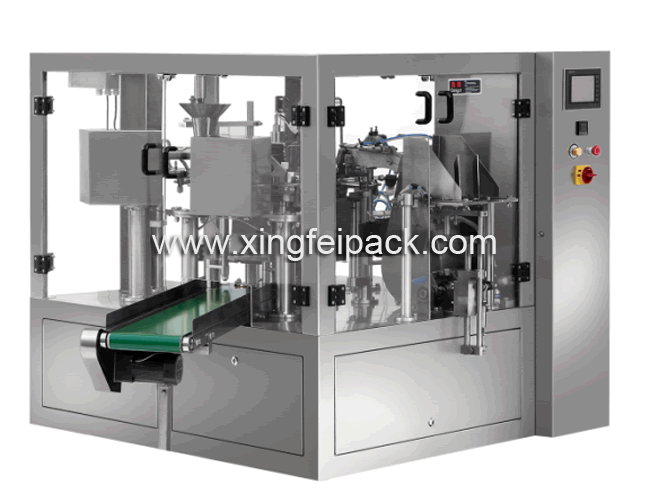

Doypack Packing and Filling Machine

Description
Lantoky Packaging Machinery is a professional manufacturer of packing machines and other sealing machine in China. We produce and sell all kinds of stand up pouch packing machine, food filling machinery and relevant automatic pouch machine.

Application
Doypack packing and filling machine is used for the flat bag, standup bag, bag with zipper, and the machine can fill and seal different granule, powder and the liquid products by matching with different measuring system.

Features
The stand up pouch packing machine has higher speed and wider application by adopting the precise and stable bag-nipping structure and eight working station.

Types for Choice of Doypack Packing in Lantoky:
XFG-200, XFG-300, XFG-K

Capacity	30 to 50 bag/min, according to product type and characteristics
Bag Size	(L): 100 to 300 mm (W): 100 to 200 mm
Filling weight	Up to 1000 g/bag (max)
Bag sealing	Sealing by heat and pressure
Power supply	AC 380V ±10%, 3-phase 50Hz
Power Consumption	2.0 kW
Air consumption of doypack packing and filling machine	0.2 m3/min at 5 to 8 kgf/ cm2 Air compressor is supplied by customer
Machine Weight	1200 kg
Dimension (W×L×H)	1340 × 1895 × 1435 mm
