Description

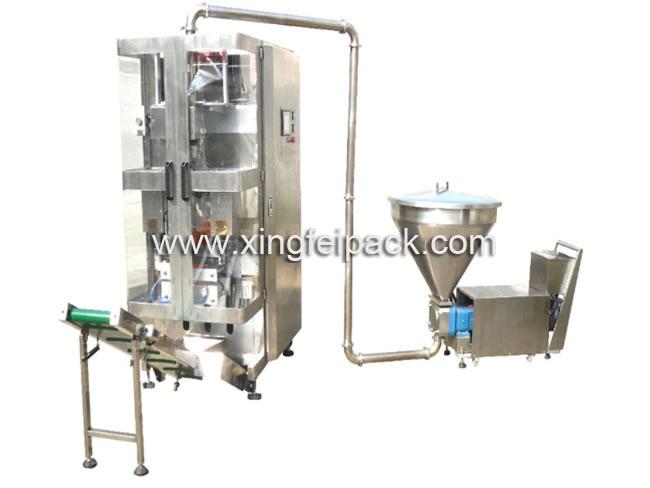

Mayonnaise packaging machine is a big bag liquid packing machine or 5kg mayonnaise, which is controlled by PLC with human-machine interface display, which is easy to operate and maintain. It also has advanced functions like automatic stop, alarm signal.
Features
1. Running pumping adopts imported 316 mirror pipe, which benefits fillings conveyor. The pipe connection uses field joints, which is easy-clean and quick dismounting.
2. Control part of mayonnaise packaging machine adopts Japan Mitsubishi PLC Program logic system, which has stable performance and self-checking function.
Types for Choice of Mayonnaise Packaging in Lantoky:
XFL-Y600,
XFL-Y600II
Parameters of Big Bag Liquid Packing Machine
|
Model
|
XFL-Y600I
|
XFL-Y600II
|
|
Bag
|
100 to 280mm
|
100 to 300mm
|
|
Bag length
|
150 to 480mm
|
150 to 600mm
|
|
Film
|
220 to 590mm
|
220 to 650mm
|
|
Packing material
|
NY/PE
|
|
packing capacity
|
4 to 10bags/min
|
|
Packing volume
|
Max.5000cc
|
Max.10000cc
|
|
Making type
|
Back seal
|
|
Power supply
|
AC, 380V50Hz/60Hz
|
|
Power of mayonnaise packaging machine
|
4.5kW
|
|
Air pressure
|
0.6 to 0.8 Mpa. 0.006 m3/min
|
|
Dimension
|
L 1350mm × W 980mm × H 1980mm
|
L 1350mm × W 1080mm × H 2150mm
|
|
Weight
|
980Kg
|
1080kg
|
Mayonnaise Packaging Machine (5 Kg Mayonnaise Packing Machine)
