Description
Powder drinks packing machine can finish the process like conveying bag, bag making, filling, weighing, sealing, cutting and counting lot number.
Features
1. Automatic powder packaging machine is equipped with safety protection, and complies with firm’s safety management requirements.

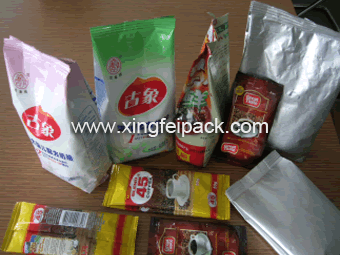

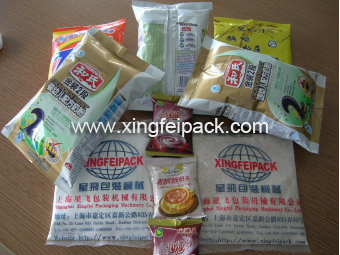

2. Error indicating system can help to handle the trouble immediately. Pillow bags and hanging bags are made in terms of customers’ different requirements.
Parameters of Powder Drinks Packing Machine
|
XFF-L 200
|
XFF-L 250
|
|
Measure method
|
Auger dosing
|
Auger dosing
|
|
Bag-making size
|
(W) 70 to 200mm (L) 100 to 300mm
|
(W)100 to 250mm (L) 100 to 350mm
|
|
Filling weight
|
10 to 500g
|
500 to 1000g
|
|
Packaging precision
|
≤1%
|
|
Packaging speed
|
25 to 60 bag /min
|
|
Power supply
|
Three phase 380/220V 50 to 60 Hz
|
|
Power of automatic powder packaging machine
|
6 kW
|
|
Pressure
|
6 to 8 kg/cm2
|
|
Air consumption
|
0.2 m3/min
|
|
Weight of powder drinks packing machine
|
700 kg
|
950 kg
|
|
Dimension
|
1300 × 1500 × 2600 mm
|

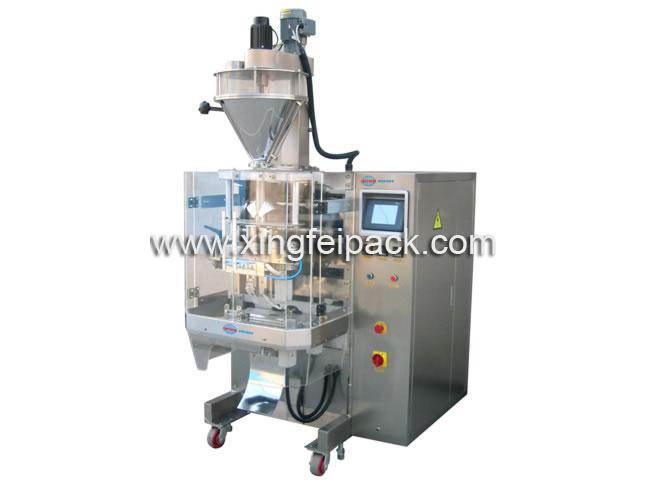

Powder Drinks Packing Machine
