Description

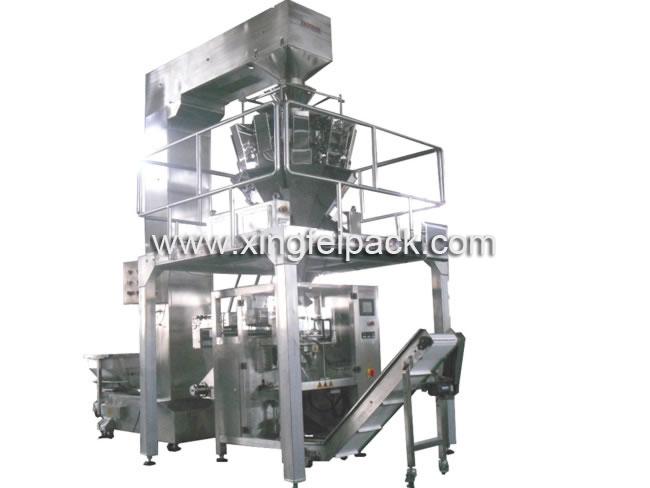

Dry fruit packaging machine finishes package making, metering, filling, sealing and other packaging processes by heat-sealing packaging material (polyethylene membrane, multilayer composite membrane, etc.).
Features of Dried Fruit Packing Equipment
1. Panasonic servo motor controls rotation of blanking bolt directly by pulse number, which features table and reliable performance, convenience of regulation.
2. The dry fruit packaging machine is controlled by PLC with human-machine interface display, which is easy to operate.
Types for Choice of Dry Fruit Packaging in Lantoky:
XFL,
XFL-200,
XFL-250,
XFL-300,
XFL-350
Parameters of Dried Fruit Packing Equipment
|
Model
|
XFL-200
|
XFL-250
|
|
Bag-making Size
|
(L)80 to 300mm, (W)80 to 200mm
|
(L)100 to 330mm, (W)100 to 250mm
|
|
Packing Speed
|
25 to 75 Bags/Min
|
25 to 65 Bags/Min
|
|
Power Supply
|
220V, 50 to 60Hz, 3.0 kW
|
380 to 220V, 50 to 60Hz, 3.6kW
|
|
Compressed air consumption of dry fruit packaging machine
|
6 to 8 kg/ m2 0.15 m3/min
|
6 to 8 kg/ m2, 0.15 m3/min
|
|
Weight
|
500 kg
|
700 kg
|
|
Dimension
|
1450 × 1000 × 1700 (mm)
|
1200 × 1450 × 1800 (mm)
|
Dry Fruit Packaging Machine
