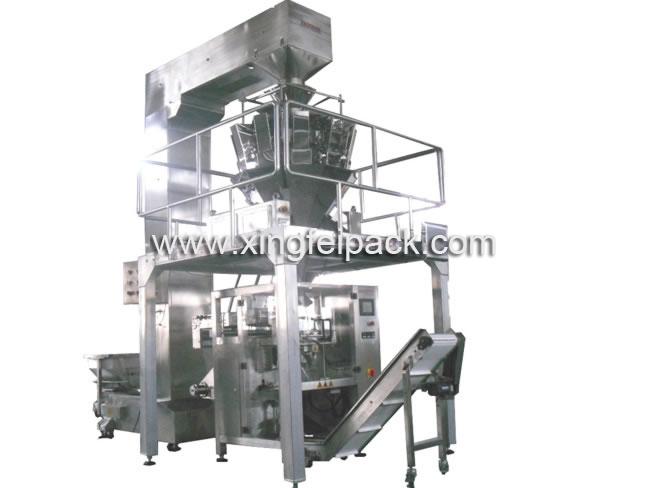

IQF Frozen Vegetable and Fruit Packaging Machine

Description
IQF frozen vegetable and fruit packaging machine extends the shelf life and quality of fresh-cut foods incorporates into absorbent pads, pouches, trays and retail containers.

Characters
1. The system will finish all the process automatically: feeding, dosing, filling, sealing, date printing and finish product conveying.
2. Frozen packing machine has the advantages of high accurate weighting, high efficiency without broken material.

Types for Choice of IQF Frozen Vegetable and Fruit Packaging Machine in Lantoky:
XFL, XFL-200, XFL-250, XFL-300, XFL-350

Model	XFL-200	XFL-250	XFL-300	XFL-350
Bag-making Size	(L)80 to 300mm, (W)80 to 200mm	(L)100 to 330mm, (W)100 to 250mm	(L)100 to 400mm, (W)100 to 300mm	(L)100 to 450mm, (W)100 to 350mm
Packing Speed	25 to 75 Bags/Min	25 to 65 Bags/Min	25 to 65 Bags/Min	25 to 60 Bags/Min
Power Supply	220V, 50 to 60Hz, 3.0 kW	380 to 220V, 50 to 60Hz, 3.6kW	220V, 50 to 60Hz, 4.0 kW	380 to 220V, 50 to 60Hz, 4.75 kW
Compressed air consumption of frozen packing machine	6 to 8 kg/ m2 0.15 m3/min	6 to 8 kg/ m2, 0.15 m3/min	6 to 8 kg/ m2, 0.15 m3/min	6 to 8 kg/ m2, 0.15 m3/min
Weight	500 kg	700 kg	800 kg	850 kg
Dimension(mm)	1450 × 1000 × 1700	1200 × 1450 × 1800	1200 × 1500 × 1950	1250 × 1500 × 2000

IQF Frozen Vegetable and Fruit Packaging Machine
