Description
Lantoky Packaging Machinery is an integrated manufacturing enterprise with the ability to designing, developing, manufacturing, installing and commissioning of packaging machinery, horizontal filling equipment and automatic packing production line with various types and specifications.
Application
Automatic horizontal filling machines are widely used in the packing fields of food, pharmaceuticals, house chemicals, cosmetics, etc. it can pack powder material, such as health food powder, milk powder, coffee powder, Chinese herb powder, chemical powder, and drink powder in the industries of foodstuff, pharmacy and medicine.
Features
1. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
2. The automatic horizontal filling machines are controlled by PLC with human-machine interface display, which is easy to operate.
3. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
4. In packaging design, the horizontal filling equipment has upright and elegant appearance without liquid, powder around the end seal.
5. With the high sealing strength and firm package, there are never the ragged edges. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.

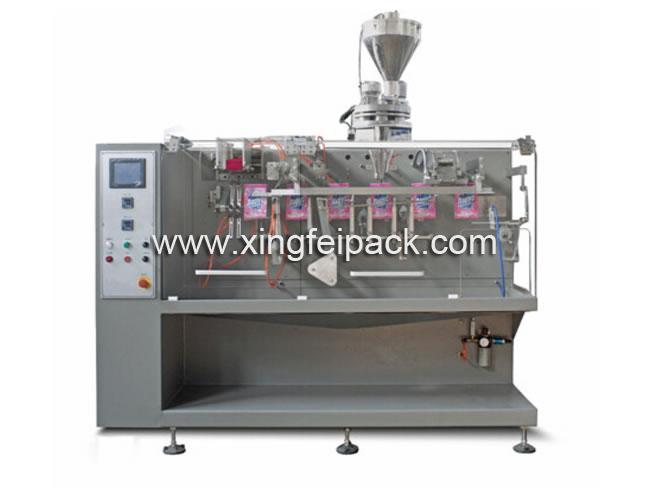

Technical Parameter of Automatic Horizontal Filling Machines
Machine dimensions
1990 × 970 × 1390(L × W × H) mm
weight
700kg
Electric supply
AC380V, 50Hz
power
1.8kW
air supply
0.5MPa
Air consumption
200NL/min
Packaging capacity
30 to 60ppm
Wide size
60 mm to 180 mm
High size
80 mm to 225 mm
Max filling capacity
500ml

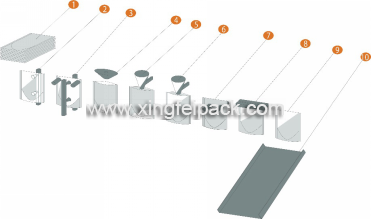

Packing Process of Automatic Horizontal Filling Machines
