Description
This spices packing machine adopts advanced photoelectric eyes control system which can automatic finish bag making, measuring, filling, sealing, cutting, easy-tear cutting, date printing, linking cutting. With the high sealing strength and firm package, there are never the ragged edges. It is the ideal choice for packing foodstuff, pharmaceutical, cosmetic, pesticide, and feedstuff industry.
Application
This spices powder packaging machine can automatically complete a series of actions, such as bag making, filling, counting and sealing. It is suitable for package of food stuff, daily chemical articles, seasoning (such as popcorn, melon seed, spice, chicken essence, peanut, ritual, non-sticky power, coffee, etc.)
Features
1. The spices packing machine is controlled by PLC with human-machine interface display, which is easy to operate.
2. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
3. Servomotor control system is available for going down film, so that we can adjust dimension of film randomly.
4. In packaging design, the spices powder packaging machine has upright and elegant appearance without liquid, powder around the end seal.
Technical Parameter of Spices Packing Machine
|
Machine dimensions(mm)
|
2060 × 750 × 1400(L × W × H)
|
|
Weight
|
About 600kg
|
|
Electric supply
|
AC380V, 50Hz
|
|
Power
|
2kW
|
|
Air supply
|
0.5MPa
|
|
Air consumption
|
0NL/min
|
|
Packaging capacity
|
40 to 80ppm
|
|
50 mm to 110 mm
|
|
Length
|
50 mm to 120 mm
|
|
Max. filling capacity
|
60ml
|
Types for Choice of Spices Packing in Lantoky:
XFS-110,
XFS-150,
XFS-180

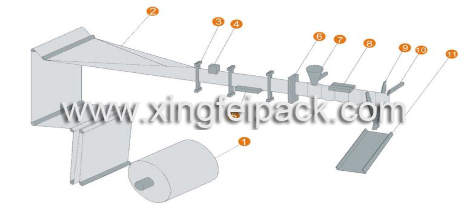

Packing Process of Spices Packing Machine
|
1.Film unwind
|
3. Film guide
|
5.Bottom seal
|
7.Open and filling
|
9.Cutting
|
11.Outlet
|
|
2.Pouch forming
|
4. Color scale detection
|
6. Vertical seal
|
8.Top seal
|
10.Pouch pulling
|
|

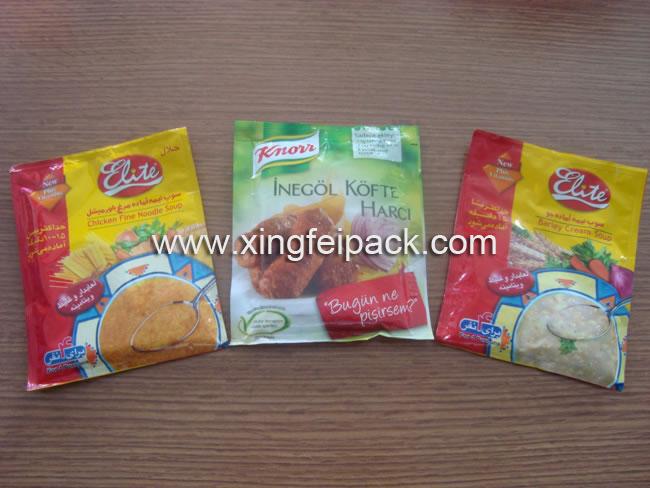

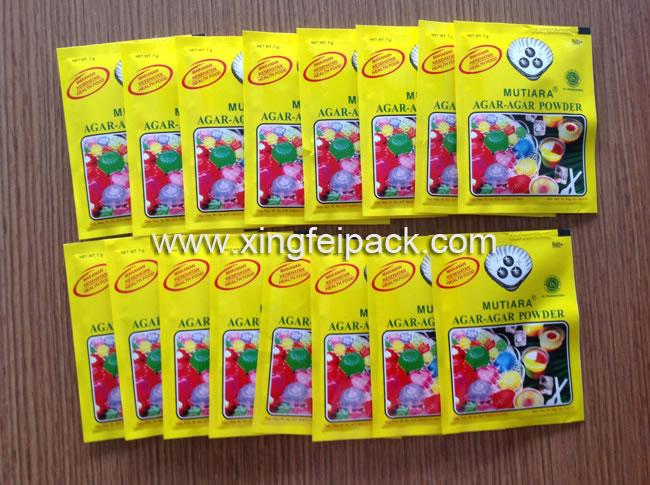

Sample Bags of Spices Powder Packaging Machine
