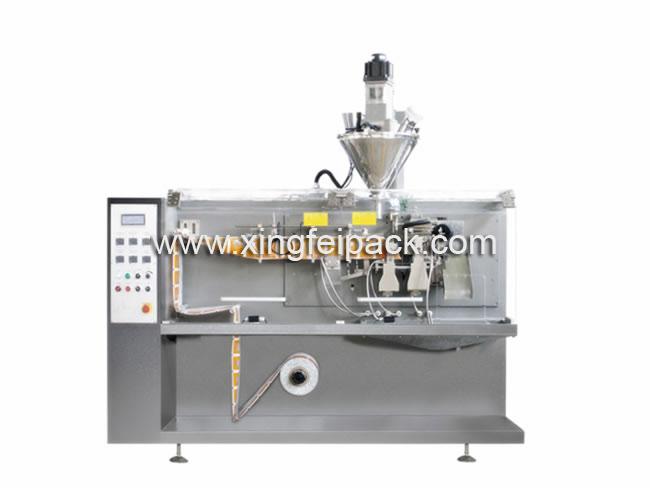

Description
Our food packing machine is made up of bag-making, dosing, filling and sealing. And the wrapping material is all kinds of multilayer heat-sealable films. All the actions are driven by air cylinder, which improve machine’s efficiency, applicability and stability.
Application
Food packing machine is suitable for quantitative weighing of granule, slice, roll or irregular shape material such as candy, seed, jelly, fries, happy fruit, peanut, frozen food, puffy food, biscuit, chocolate, nut, pet food, recreation food, small hardware and plastic parts, etc.
Features of Horizontal Form Fill Seal Machine
1. In packaging design, our machine has upright and elegant appearance without liquid, powder around the end seal.
2. Match with different filling head, the machine can pack powders, liquids, pastes, granule in three side or four side sealed sachets.
Technical Parameter of Food Packing Machine
|
Machine dimensions
|
2060 × 750 × 1400(L × W × H) mm
|
|
weight
|
About 600kg
|
|
Electric supply
|
AC380V, 50Hz
|
|
power
|
2kW
|
|
air supply
|
0.5MPa
|
|
Air consumption
|
0NL/min
|
|
Packaging capacity
|
40 to 80ppm
|
|
50 mm to110 mm
|
|
Length
|
50 mm to 120 mm
|
|
Max. filling capacity
|
60ml
|
Types for Choice of Food Packing in Lantoky:
XFS-110,
XFS-150,
XFS-180

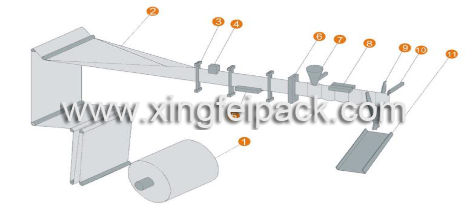

Packing Process of Food Packing Machine
|
1.Film unwind
|
3. Film guide
|
5.Bottom seal
|
7.Open and filling
|
9.Cutting
|
11.Outlet
|
|
2.Pouch forming
|
4. Color scale detection
|
6. Vertical seal
|
8.Top seal
|
10.Pouch pulling
|
|
Sample Bags of Horizontal Form Fill Seal Machine
